TRITUS-TX

TRITUS-TX

Submersible pumps with Grinder

TRITUS-TX – 12m, 5.4m³/h

Features:

adjustable Vertical Magnetic Float Level Switch
Ideal for sumps with Limited Space(220mm)
- Pump Body: Fibre-Glass Reinforced Techno-polymer,
- Impeller: Noryl
- Grinder: Hardened AISI440C S/Steel
- Immersion Depth: 5m
- Drainage Up to 85mm
Winding with intergrated thermal motor protection.

Inquire about this product

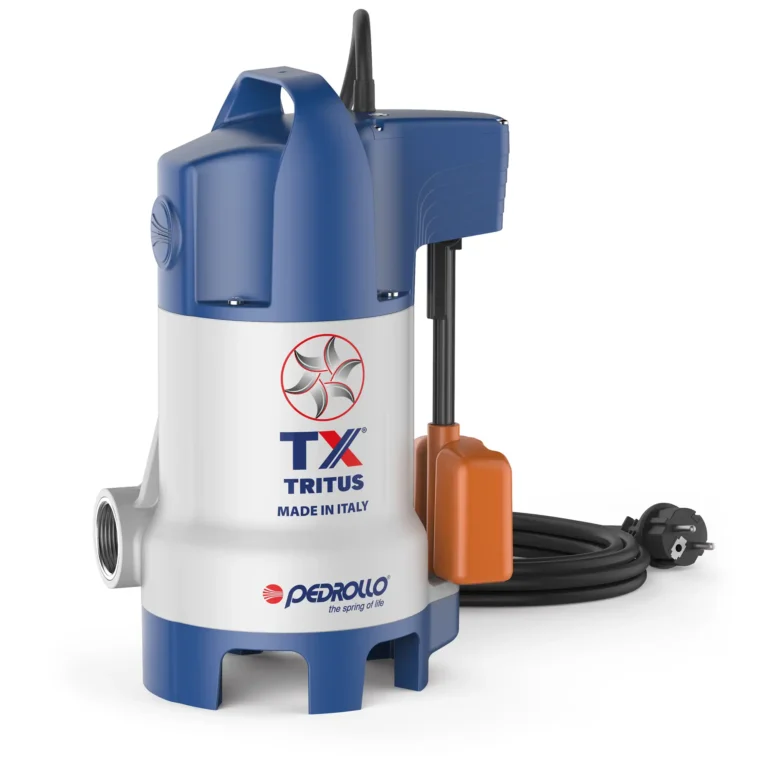

The PEDROLLO Tritus TX is a submersible sewage pump designed for use in sumps with limited spaces, 220 mm on each side, by use of a compact, integrated magnetic float switch with a vertical sliding mechanism.

The sturdy, hard stainless steel blade of the TRITUS-TX grinder pump cuts through the solids and fibers present in sewage and household wastewater. A small, integrated magnetic float switch with a vertical sliding mechanism is part of it. With as little as 220 mm of clearance from the pit wall, this creative design guarantees the highest level of electrical safety while enabling operation in small spaces.

Technical Specifications

Flow Rate: 5.4 m³/h
Maximum Head: 12m
Draining

Pump Construction

Pump Housing: Technopolymer
Impeller: Noryl
Motor Sleeve: Stainless steel
Grinder: Stainless steel

Features

Robust, hardened stainless steel blade – to cut through solids and fibers found in domestic wastewater and sewage.
Compact, integrated magnetic float switch with a vertical sliding mechanism—ensures outmost electrical safety while facilitating operation in enclosed spaces.
Liquid-cooled motor—designed to enhance continuous operation.
Thermal Cutout—provided in the motor windings to protect against pump overload
The pump can be connected directly to the mains power supply through a 10 A fuse.

OPERATING CONDITIONS

Pumped Liquid: Thin, chemically non-aggressive liquids containing small, suspended particles up to 30mm (TEX)
Max. Fluid Temperature: +40ºC (TEX up to +90ºC for short bursts of up to 3 minutes intermittent service)
Max. Operating Depth: 5 m
Bottom Drainage Level: 35mm
