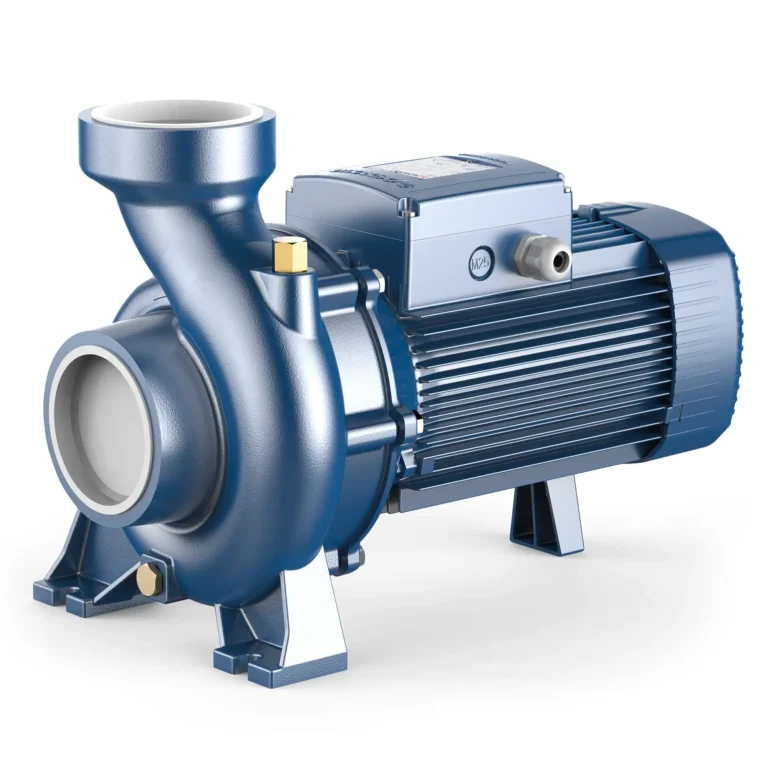

PEDROLLO HF

The PEDROLLO HF Series are non-self-priming pumps with close-coupled motors for high flow rate applications.

They have sufficient passageways in the volute and impeller to enable the pumping of water with a light silt load specifically made for heavy-duty industrial and agricultural use. Because of their back pullout design, the pumps can be disassembled without removing the pump casing from the pipework.

Pump Construction

• Pump Body: Cast Iron
• Impeller: Stainless steel AISI 304 (for HF 4, HF 6)
  • Brass (for HF 8)
    Cast iron (for HF 20, HF 30)
• Shaft: Stainless steel AISI 431
• Pump Cover: Cast iron
  Stainless steel AISI 304 (for HF 4)

Technical Specifications

• Flow rate: up to 2400 l/min (144 m³/h)
• Head: up to 24.5 m
• Suction Head: up to 7 m
• Liquid temperature: between -10 °C and +90 °C
• Ambient temperature: up to +40 °C
• Maximum working pressure: – 6 bar for HF 4
• 10 bar for HF 6-8-20-30

Features of PEDROLLO HF

• brushless TEFC induction motors—designed for continuous operation
• thermal overload protection—thermal cutout in the windings to protect against electrical overload.
• can be connected directly to the mains power supply through a 10 amp fuse or MCB
• Three-phase motors require remote DOL starter protection according to local regulations.

OPERATING CONDITIONS

• Pumped liquid: Thin, clean, chemically nonaggressive liquids without solids or fibers.
• Fluid Temperature: +60°C
• Ambient Temperature: +40°C
• Suction lift: 7 m (at sea level)
