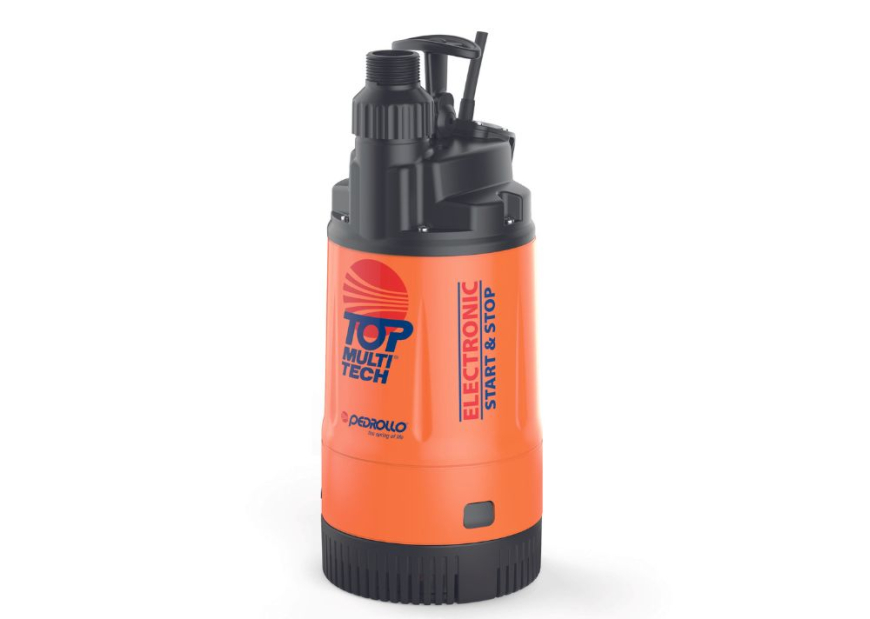

TOP MULTI-TECH

Multi-Stage Automatic Submersible Pumps

Model	Power	Head	Flow Rate
Top multi-Tech 2	0.37Kw	41m	4.8 m³/h
Top multi-Tech 4	0.55Kw	52m	4.8 m³/h

Features

Pump Body: Fibreglass Reinforced Techno-Polymer
Impeller and Diffuser: Noryl
Internal Electronic Device Starts & Stops The Pump Automatically When System Pressure Falls Below
- 1.5Bar (Vertical Delivery Elevation – 10m) Tech-2
- 2.5 bar (Vertical Delivery Elevation- 17m) Tech 4
Protects Pump: Against Dry-Running, Against Blockage Starts Pump for 10 Seconds Every 48Hrs.
Thermal Overload Protector – Incorporated in Winding
- Double Mechanical Seal
- Immersion Depth: 5m
Min 1Ltr Tank – 1.2Bar – Prevents Frequent Re-starts
Energy Saving

Inquire about this product

Top Multi-Tech pumps are centrifugal multistage pumps designed to transfer water free from abrasive particles and liquids. They are ideal for domestic water supply from tanks, reservoirs and deep wells.

Aqua Pumps’ Top Multi-Tech pumps are available at customer friendly rates.

Call 0790719020

Specifications of Top Multi-Tech

Flow Rate: up to 120 l/min (7.2 m³/h)
Max head: 52m
Max liquid temperature: 40°C
Maximum operating depth below water level: 5m
Drainage Capability/ max particle size: 35mm
Motor: 2 poles

Pump Construction

Pump Body: Technopolymer
Impellers: Noryl
Diffusers: Noryl
Shaft: Stainless Steel

Features

Motor Cooling: Jacketed pump design enables the pump to work while partially submerged.
Mechanical seal with intermediate Oil Chamber: for total motor sealing.
Simple design: eases maintenance.
Built-in Motors: non-overloading motors for continuous operation.
Thermal protection: cutout in the windings of the motor to protect against overload.
Direct connection to the mains power: connects using a 10amp fuse

Built-in Electronic Controller – provides water on demand. Has the following features:

Starts on pressure below 1.58 bar for multi-Tech 2 and 2.5 bar for multi-Tech 4 and stops on flow (<3l/min)
Protects against dry run with auto restart. In the event of dry running the pump will make further attempts of double time intervals up to 50 hours. After this the pump will be complete and must be manually reset by disconnecting the power and re-connecting.
To avoid seizure during long periods of inactivity, the pump will start and run for approximately 10 seconds every 48 hours.
The maximum vertical distance between the pump and the highest outlet point (tap) is 10 m for Top Multi-Tech 2 and 20 m for Top Multi-Tech 4. Exceeding this limit will prevent the system from operating efficiently.

To enhance top performance of the pump and prevent cycling, install a 1 litre pressure tank along the delivery line, before the first gate valve, with a pre-charge pressure of 1.2 bar for Multi Tech 2 and 2.2 bar for Multi-tech 4. A non-return valve should not be installed on the pipes.
