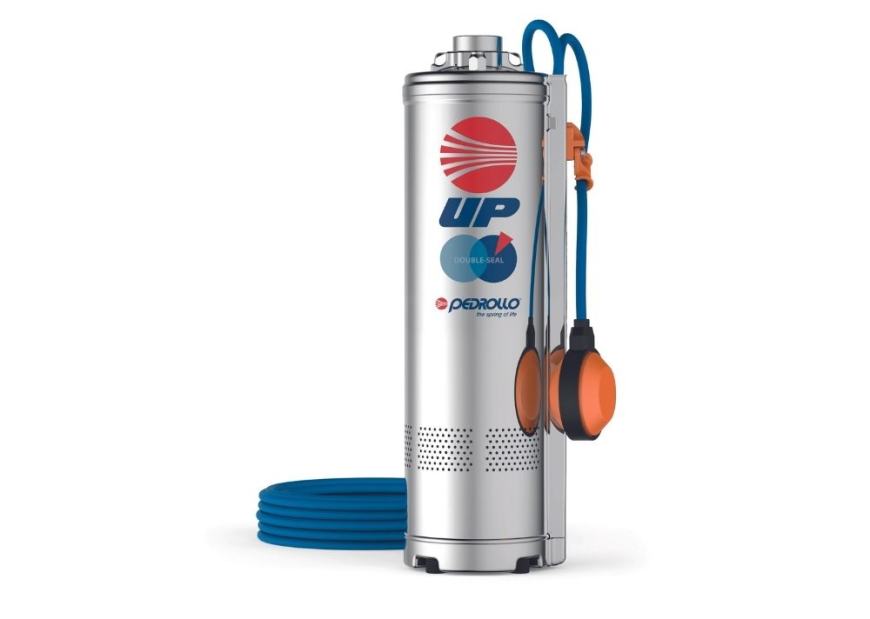

PEDROLLO UP

Close-Coupled Electric Submersible Pumps

Pump Model	Power	Head	Max flow rate
UPm 2/6	1.5Kw,	97m	4.8m³/h
UPm 4/6	1.5Kw,	80m	7.2m³/h
UPm 8/4	1.5Kw,	54m	10.8m³/h

Features

Motor and Pump Casing: AISI304 S/S
Impeller & Diffuser: Noryl
Silt Content:- 150g/m3 Diameter, 150mm. Installation: Vertical / Horizontal
Maximum Immersion Depth: 20m
Liquid Temperature: 40oC
Efficient & Reliable: Irrigation, Pressure Boosting
Winding Integrated Thermal Motor Protection
Double Mechanical Seal With Interposed Oil Chamber
20m Cable & Floatswitch

Inquire about this product

The Pedrollo UP range of multistage impeller submersible pumps are designed for reliable operation thanks to their innovative design that prevents failure even after long periods of inactivity.

Highly efficient and reliable, these pumps are ideal for various applications, including water distribution in domestic, civil, and agricultural settings, particularly for water distribution in conjunction with pressure tanks, for irrigation, pressure boosting, and more.

Pump Construction

Delivery Port: Stainless steel AISI 304
Pump Sleeve: Stainless steel AISI 304
Impellers: Noryl
Diffusers: Noryl
Shaft: Stainless steel AISI 431

Specifications of PEDROLLO UP

Max flow Rate: 10.8 m³/h
Max Head: 97m
Max Liquid temperature: +40 °C

PEDROLLO UP Application limits

Max Liquid temperature: +40 °C
Maximum sand content 150 g/m³
Maximum operating depth below water level up to 20 m (with an appropriately sized power cable)
Vertical and horizontal operation
