Dayliff DSP 3 series is a range of multistage centrifugal borehole water pumping solutions engineered for high efficiency. These pumps are ideal for domestic, agricultural, and small-scale domestic water needs that require reliable and continuous flow.
Dayliff DSP 3 Pump Construction
Noryl impellers and glass-filled polycarbonate diffusers for excellent sand handling and wear resistance.
Stainless steel (AISI 304) inlet/outlet chambers, housing, shaft, and coupling for superior durability in corrosive underground environments.
Dayliff DSP 3 Features
- Multistage centrifugal design: Provides smooth flow and stable performance across varying depths.
- Floating impeller design: Enhances operational efficiency and allows handling of modest sand content.
- Sealed stainless steel motor: A liquid-cooled, 2-pole asynchronous squirrel-cage motor ensures reliable and cool operation even under heavy workloads
A single-phase motor is equipped with a separate control box that has an isolator, an indicator light, overload protection, and a start connector.
For three-phase motors, a DOL starter and Dayliff pump controller are ideal to ensure low-level protection, motor overload protection, and voltage fluctuation control.
Enclosure Class: IP68
Insulation Class: F
Speed: 2900 rpm
Operating Conditions
Pumped liquid: Thin, clean, chemically non-aggressive liquids with a max. sand content of 50 g/m³.
Max. Water temperature: +35°C
Max. immersion depth: 200m
Min. borehole diameter: 110mm

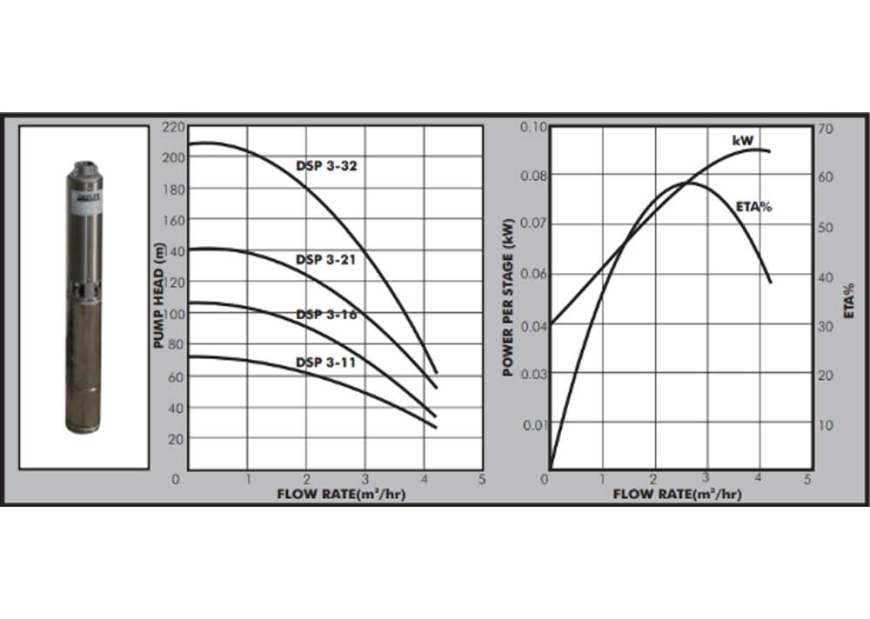

| Model | Voltage (V) | Power | Current (A) | Istart/I | DN ('') | Dimensions (mm) | Weight (kg) | |||
| kW | HP | A | C | D | ||||||
| DSP 3-11 | 1x240 | 0.75 | 1 | 4.3 | 4.7 | 1¼ | 342 | 98 | 722 | 21 |
| 3x415 | 2.3 | 3.9 | 707 | 20 | ||||||
| DSP 3-16 | 1x240 | 1.1 | 1.5 | 8.1 | 4 | 430 | 835 | 24 | ||
| 3x415 | 3.1 | 3.9 | 810 | 22 | ||||||
| DSP 3-21 | 1x240 | 1.5 | 2 | 10.4 | 3.7 | 519 | 959 | 28 | ||
| 3x415 | 4 | 3.5 | 924 | 25 | ||||||
| DSP 3-32 | 1x240 | 2.2 | 3 | 15 | 3.1 | 749 | 1244 | 35 | ||
| 3x415 | 5.6 | 3.9 | 1189 | 30 | ||||||
