TOP-VORTEX
Submersible Pumps for DRAINAGE

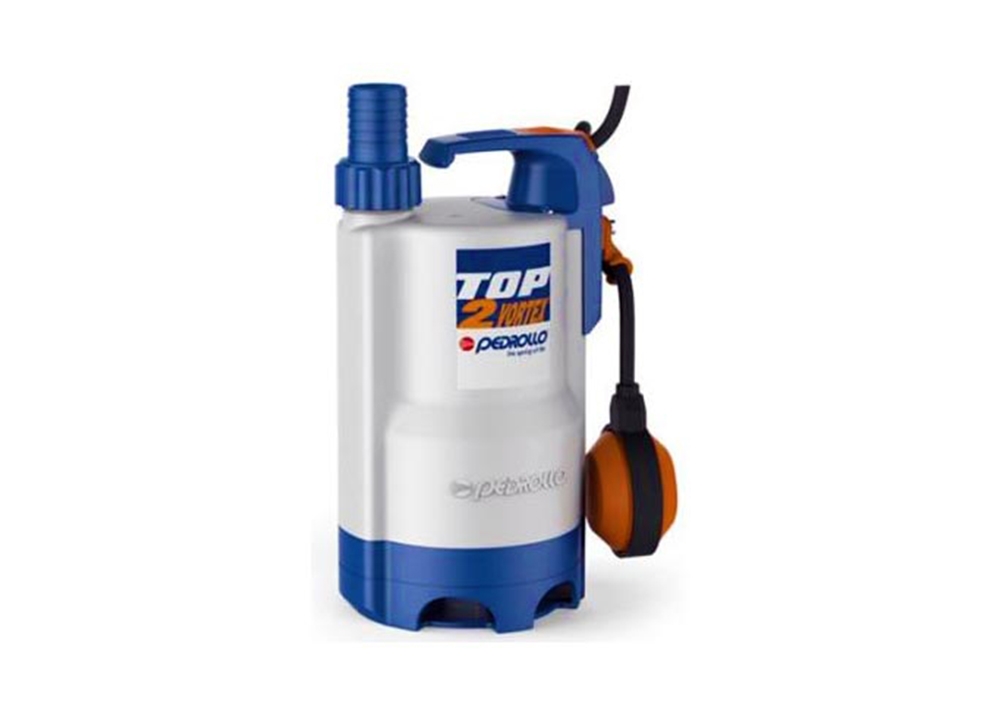

Top2-Vortex 0.37Kw, 7.6m, 9.3m3/h
Features
- Pump Body: Techno polymer
- Impeller: Vortex Techno polymer
- Diffuser: Technopolymer
- Winding Integrated Thermal Motor Protection
- Immersion Depth: 3m
- Liquid Temperature: 40°C (90°C 3Min Bursts)
- 25mm Diameter Suspended particles
- Floatswitch – Dry run Protection / Re-start Pump
Double Mechanical Seal (Top 5),
Application: Drainage, Emptying Tanks, Clearing Sumps
The Pedrollo Top-Vortex Pumps are centrifugal submersible pumps for draining dirty water containing high levels of particles.
Aqua Pedrollo Top-Vortex pumps are the ideal choice for dealing with light water conveyance duties. Our Top Vortex pumps come at affordable and customer friendly rates.
Call 0790719020
Specifications of Top-Vortex Pumps
- Pumped liquid: thin chemically non-aggressive liquid with particles.
- Flow rate: up to 170 l/min (10.2 m³/h)
- Head Up: up to 8.7m
- Liquid Temperature: up to +40 °C (+90 °C for intermittent service up to 3 minutes)
- Capable of handling suspended particles: up to Ø 25 mm
- Max depth below water level: 3 m
- Motor: 2 poles
- Ingress protection rating: IP 68
Pump Construction
- Pump Body: fiberglass reinforced techno plastic casing
- Impeller: NORYL
- Shaft: Stainless steel AISI 431
- Motor Sleeve: Stainless steel AISI 304
Features of Pedrollo Top-Vortex Pumps
- Double mechanical Seal: intermediate chamber for motor protection
- Liquid Cooled Motor: for continuous operation
- Thermal or overload protection: thermal cutout in the copper windings
- Automatic pump control: Float with built-in switch to automatically start and stop the pump.
- Direct connection to the mains power Supply through a 10amp fuse.
Why Pedrollo Top-Vortex Pumps
Designed for Dirty Water
Pedrollo Top Vortex pumps are designed to handle water mixed with particles of up to 25mm diameter size. Suitable for moving muddy water, rainwater, household wastewater and river water.
Safe and Easy to Use
The pump design has a built-in-float switch that automatically starts and stops the pump as per the water level. Due to this mechanism, you don’t need to monitor the pump every time as it operates safely without risk of dry running.
Compact and Versatile
Top Vortex pumps are small, compact and light making them easier to install, carry and store when not in use.
Energy Efficient
They deliver top performance while consuming low power.
| Model | Motor | DN | Dimesions (mm) | Weight(kg) | ||||
| Size (kW) | Max Current(A) | A | D(min) | H | Max. Particle | |||
| Top 2 | 0.37 | 1.9 | 1 ¼" | 152 | 14 | 260 | 10 | 5 |
| Top 3 | 0.55 | 3.1 | 1 ¼" | 152 | 14 | 290 | 10 | 7 |
| Top 5 | 0.92 | 5.4 | 1 ½" | 204 | 21 | 337 | 10 | 11 |
| Top Vortex | 0.37 | 1.9 | 1 ¼" | 152 | 25 | 288 | 25 | 5 |
- Draining flooded areas (garages, basements, courtyards)
- Emptying tanks and wells
- Pumping rainwater or surface water
- Handling wastewater in homes or small businesses
- Emergency drainage situations
