Description

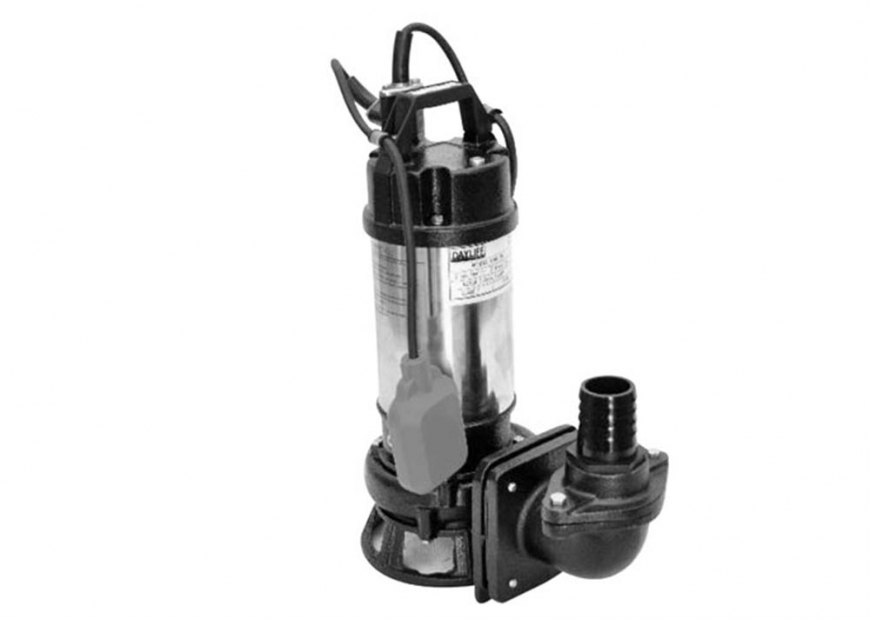

The Dayliff DWC series are a range of heavy duty submersible pumps engineered for handling sewage and wastewater in industrial or domestic places.
Dayliff DWC Pump Construction
- Cast Iron Impeller with Tungsten carbide cutting edge
- Cast Iron Casing
- Double mechanical seal and NBR oil seal.
Features of Dayliff DWC
- Specialized cutter impeller—for grinding waste into small particles to enhance easier waste suction.
- Free-standing design—for easier installation
- Suits flange connection, hose connection, or guide rail connection—fittings are available for various flange, hose pipe, or guide rail connections.
Comes with a 10 m H07RNF cable.
Pump Motor
Pumps are supplied with dry-type 2-pole motors designed for continuous duty. Single-phase motors have integral thermal protection and can be connected directly to the mains power through a 10A fuse MCB. Three-phase motors require a remote DOL starter.
Enclosure Class: IP68
Insulation Class: B
Speed: 2900 rpm
OPERATING CONDITIONS
- Pumped liquids: Thin, chemically non-aggressive liquids containing suspended particles up to the specified size.
- Max. Liquid temperature: +40°C
- Max. Operating Depth: 10m
- Min. Immersion Depth: 310mm
Product Data Sheet

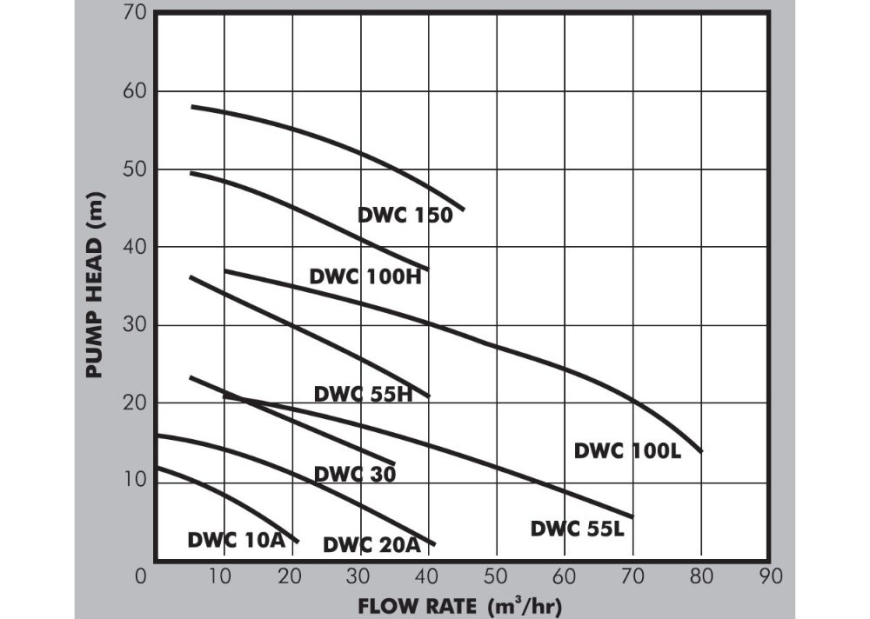

PUMP DATA
| Model | Power | Current (A) | Max. Particle Size (mm) | DN ('') | Dimensions (mm) | Weight (kg) | |||||
| HP | kW | A | A2 | D | H | H1 | |||||
| DWC 10A | 1 | 0.75 | 6 | 22 | 2 | 222 | 115 | 179 | 416 | 292 | 24 |
| DWC 20A | 2 | 1.5 | 12 | 403 | 250 | 212 | 541 | 393 | 34 | ||
| DWC 30 | 3 | 2.2 | 4.6 | 26 | 345 | 240 | 138 | 518 | 390 | 39 | |
| DWX 55H | 5.5 | 4 | 7.7 | 18 | 386 | 265 | 565 | 435 | 43 | ||
| DWC 55L | 45 | 3 | 420 | 305 | 248 | 590 | 460 | 49 | |||
| DWC 100H | 10 | 7.5 | 14.3 | 18 | 2 | 408 | 275 | 138 | 690 | 550 | 86 |
| DWC 100L | 26 | 3 | 450 | 325 | 180 | 700 | 560 | 87 | |||
| DWC 150 | 15 | 11 | 21.8 | 19 | 441 | 295 | 138 | 765 | 480 | 100 | |
