VILLABELLA

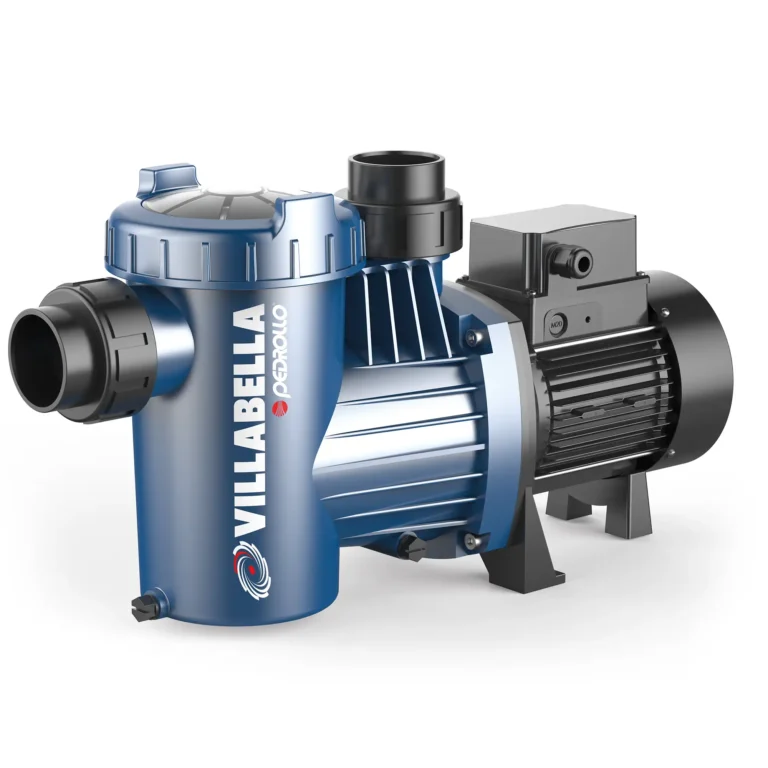

VILLABELLA – Self-Priming Swimming Pool Pump
- Villabella 50 (14m, 18m3/h) 8 m³/h) -Villabella 75 (15.5m, 19.8 m³/h)
- Villabella 100 (16.5m, 4 m³/h) 8 m³/h) -Villabella 150 (19m, 27 m³/h)
- Villabella 200 (20m, 4.2 m³/h) -Villabella 300 (21m, 36 m³/h)
Features
- Robust, High-Quality, Thick Materials For Extended Durability & Quiet Operation
- Pump Body, Seal Insert & Diffuser – Glass-Fibre Reinforced Polypropylene
- Impeller – Noryl
- Motor Case With Cataphoresis Treatment
- Pre-Filter With Transparent Cover, Extra Large Filter Basket – Reduce Cleaning Frequency
- Cover & Pre-Filter – Polycarbonate
- Closing Knob & Base – Nylon
- Key to Open Pre-Filter Included
- Manometric Suction Head 4m
- Liquid Temperature: 40°C (pH 6.5–8.4)
Inquire about this product
Description
VILLABELLA is a self-priming pump with a built-in filter, designed for water circulation in residential pools up to 135 m³.
Features of VILLABELA
- The pre-filter is equipped with a transparent cover for easy visual inspection and an extra-large filter basket to reduce cleaning frequency.
- High resistance to heat, chemicals, and salt corrosion.
- Motor case painted with cataphoresis for added protection
- Supplied with 2″ GAS threaded ISO 228/1 connection fittings and AISI 304 screws
Technical Specifications
- Flow rate: up to 600 l/min (18.6 m³/h)
- Head: up to 21 m
- suction head: up to 4 m.
- Liquid temperature: up to +40 °C
- Ambient temperature: up to +40 °C
- Maximum working pressure: 2.5 bar
- Motor: 2 poles
- Ingress Protection Rating: IP 55
VILLABElLA Pump Construction
- Pump Housing: Glass-fibre reinforced polypropylene
- Impeller: Noryl™
- Diffuser: Glass-fiber-reinforced polypropylene
- Shaft: Stainless steel AISI 316
- Seal Insert: Glass-fibre reinforced polypropylene
