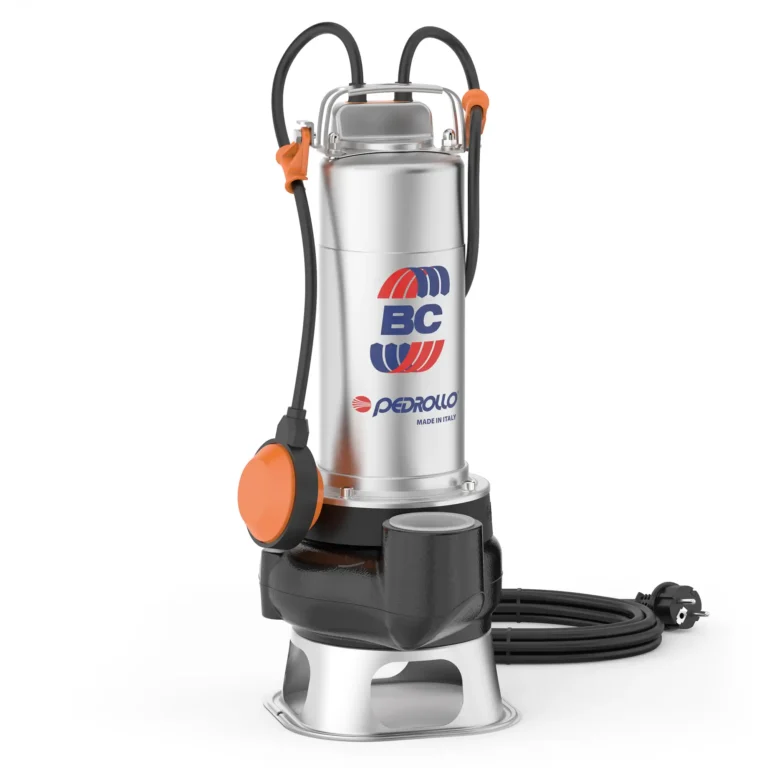

PEDROLLO BC
Specifications
- BCm 15/50 1.1Kw 15m, 45m3/h – Impeller: Micro-Cast AISI304
Features
Winding Integrated Thermal Motor Protection, Floatswitch
Immersion Depth: 5m
BC 40/35 3Kw, 21.4m, 980m3/h
BC 75/35 5.5Kw, 31m, 114m3/h – Impeller: Cast Iron (Cataphoresis)
Special 3PH Thermal Protector – Activates in Case of Overheating or Abnormal Power Consumption.
Required: DOL Control Panel, Dirty Water Floatswitch
Liquids Containing Suspended Solids, Short Fibres, Wastewater, Sewage, Surface Water & Sludge mixed water, Activated and Putrid Sludge
- Max Immersion Depth: 10m
- Fixed Installation available on order
The range of Pedrollo BC centrifugal submersible drainage pumps are manufactured for wastewater with comparatively high levels of contaminants. The BC pump series has a double-channel impeller for pumping liquids with suspended solids and short fibers, while the D series has open impellers for lighter tasks and is best suited for draining flooded areas.
PEDROLLO BC Pumps are designed for removal of dirty and sewage water in domestic, industrial, and civil areas.
Features of Pedrollo BC Pumps
- Built-in liquid Cooled Motors – for continuous operation
- Thermal overload protection—thermal cut-out to protect against pump overload.
- Direct connection to the mains power supply—the pump can connect to the mains power supply directly through a 10-amp fuse.
Pump Construction
- Pump Body: Cast Iron Body electrocoated with Epoxy material
- Motor: Stainless steel
- Impellers: Cast Iron
- D series models are fitted with Noryl plastic impellers and stainless-steel intake screens
OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically nonaggressive liquids containing some impurities and fibres.
Max. Fluid Temperature: +40°C
Max. Operating Depth: 5 m
Min. Immersion Depth: 300mm (BCm15/50), 470mm (BC 40,75/35)
| Model | Power | Current (A) | Max. Particle Size(mm) | DN(") | Dimensions (mm) | Weight (kg) | ||||||||||
| kW | HP | 1x240V | 3x415V | A | B | C | D | E | F | H | H1 | |||||
| BCm 15/50 | 1.1 | 1.5 | 8 | 50 | 2 | 115 | 95 | 155 | 65 | 500 | 500 | 447 | 164 | 16 | ||
| BC 40/35 | 4 | 5.5 | 6 | 35 | 2½ | 113 | 170 | 40 | 800 | 595 | 100 | 56 | ||||
| BC 75/35 | 5.5 | 7.5 | 14 | 665 | 67 | |||||||||||
