MC4

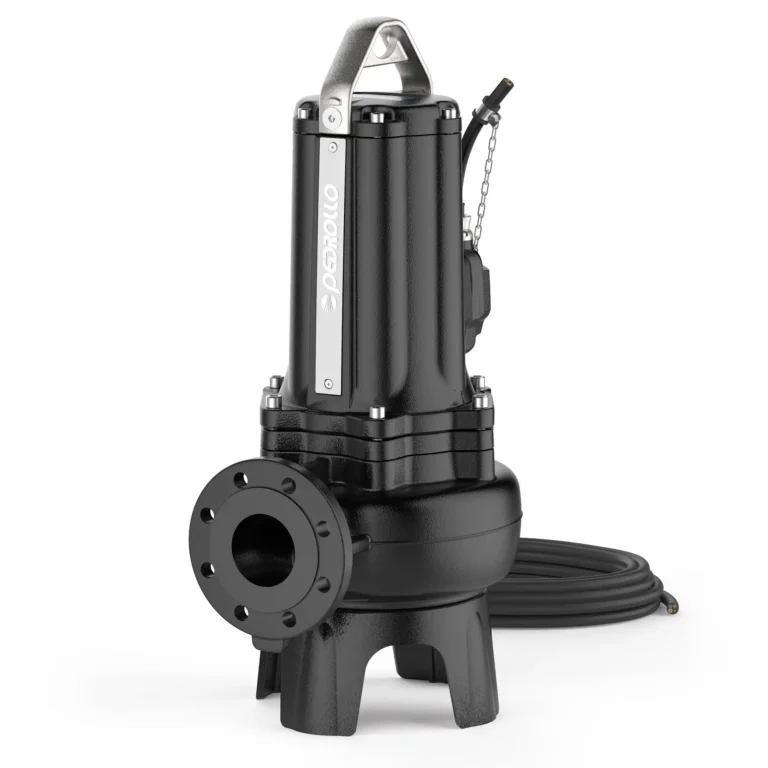

MC / MC4—Two-Channel Submersible Pumps
MC 40/50 3 kW 25m, 66 m³/h
MC 40/65 3kW 17m, 96 m³/h – Impeller: Micro-Cast AISI304
MC4 55/55 4 kW 16m, 174 m³/h – Impeller: Cast Iron (Cataphoresis)
Pump Body & Motor Casing: Cast Iron With Cataphoresis Treatment
Special 3PH Thermal Protector – Activates in Case of Overheating or Abnormal Power Consumption.
Required: DOL Control Panel, Dirty Water Float Switch
Liquids Containing Suspended Solids, Short Fibres, Wastewater, Sewage, Surface Water & Sludge mixed water, Activated and Putrid Sludge
Max Immersion Depth: 10m
Fixed installation is available on order
The PEDROLLO MC4 series is designed with robust abrasion resistance and high durability to handle liquids with suspended solids and fibers as well as sewage and groundwater. These pumps are equipped with a TWO-CHANNEL impeller and are constructed from stainless steel and cast iron for corrosion resistance.
PEDROLLO MC4 pumps are ideal for apartment buildings, public facilities, industries, parking facilities, and washing areas.
Pedrollo MC4 Construction Materials
- Pump Housing: Cast Iron
- Impeller: Cast Iron
- Motor Case: Cast Iron
- Shaft: Stainless steel AISI 431
Technical Specifications
- Flow rate: up to 5000 l/min (300 m³/h)
- Head: up to 28m
- Liquid temperature: up to +40° C
- Suspended Solids size up to Ø 80 mm
- must not rise more than 290 mm
- Maximum operating depth below water level: up to 10m.
- Motor: 4 poles.
