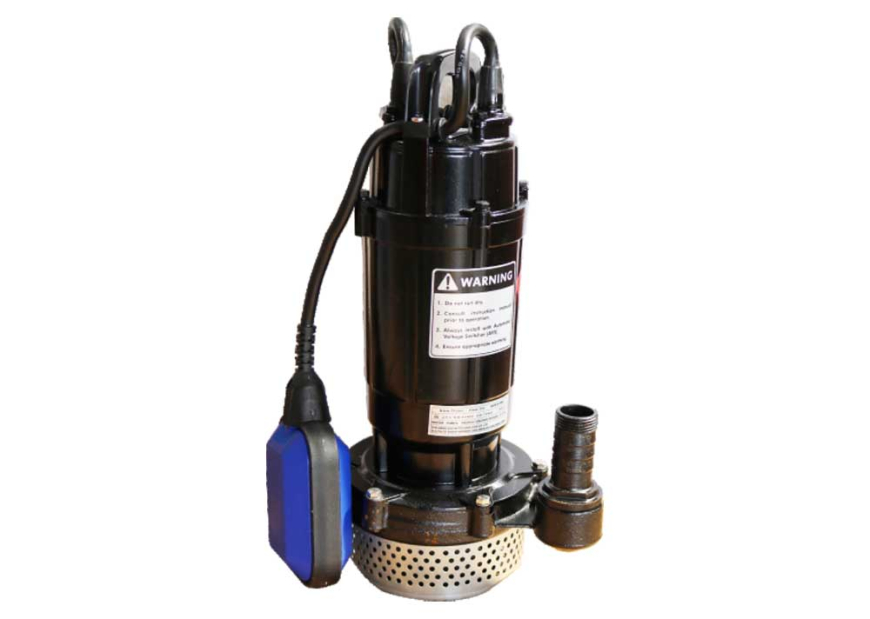

The Dayliff DWY models are a range of submersible pumps engineered for pumping well water and draining clean water with less impurities. DWY pumps are best suited for domestic and small-scale water transfer needs.
Dayliff DWY Pump Construction
All parts of the pumps are made of cast aluminum.
These pumps consist of a closed impeller design and are equipped with an 8 m cable and float switch for automatic pump operation.
Motor Specifications
Consists of a two-pole single-phase motor with integral thermal overload protection.
Can be directly connected to the mains power through a 10 A fuse or Miniature Circuit Breaker (13 A for 1.5 kW motor).
Enclosure Class: IP68
Insulation Class: F
Voltage: 1×240
Speed: 2850 rpm
OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids
Max. Fluid Temperature: +40°C
Max. Ambient Temperature: +40°C
Min Immersion Depth: 10 m
Max. Particle Size: <1.1kW, 3.3mm; >1.5kW, 5.5mm
| Model | Power | Current(A) | Dimensions(mm) | DN("") | Weight(kg) | ||
| kW | HP | W | H | ||||
| DWY370 | 0.37 | 0.5 | 2.8 | 195 | 340 | 1 | 7 |
| DWY550 | 0.55 | 0.75 | 4.2 | 235 | 380 | 2 | 10 |
| DWY750L | 0.75 | 1 | 6.1 | 230 | 390 | 1.5 | 11 |
| DWY750H | 6.3 | 235 | 390 | 1 | 11 | ||
| DWY1500 | 1.5 | 2 | 9.1 | 270 | 465 | 3 | 20 |
