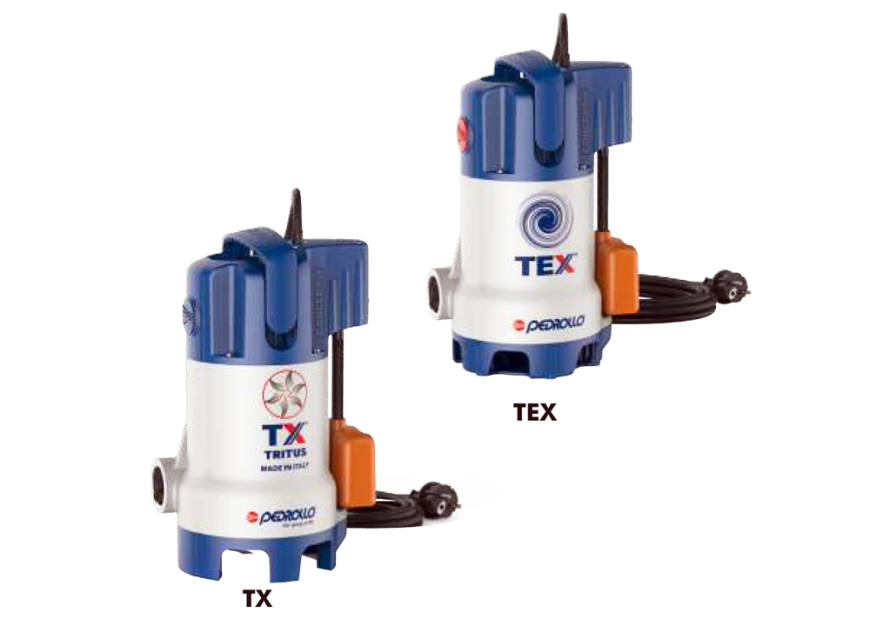

TEX

PEDROLLO TEX is an electric submersible drainage pump for sewage wastewater removal from sumps and septic pits. They are also ideal for portable uses such as tanks, reservoirs, ditches, or flood evacuation.

The pump body construction is from particularly impact-resistant technopolymer with a threaded metal insert port on the side for rapid water evacuation with minimal energy consumption. All pumps are supplied with 5 m power cable as standard.

TEX pumps come with a compact, integrated magnetic float switch that enhances safety and enhances installation in confined spaces including sumps as small as 220 mm on each side.

Features

• Compact, integrated magnetic float switch with a vertical sliding mechanism—ensures outmost electrical safety while facilitating operation in enclosed spaces.
• Liquid-cooled motor—designed to enhance continuous operation.
• Thermal Cutout—provided in the motor windings to protect against pump overload
• The pump can be connected directly to the mains power supply through a 10 A fuse.

Technical Specifications

• Flow Rate: 5.4 m³/h
• Maximum Head: 12m

Pump Construction

• Pump Housing: Technopolymer
• Impeller: Noryl
• Motor Sleeve: Stainless steel
• Grinder: Stainless steel

Operating Conditions

• Pumped Liquid: Thin, chemically non-aggressive liquids containing small, suspended
• particles up to 30mm (TEX)
• Fluid Temperature: +40ºC (TEX up to +90ºC for short bursts of up to 3 minutes intermittent service)
• Operating Depth: 5 m
• Bottom Drainage Level: 35mm
