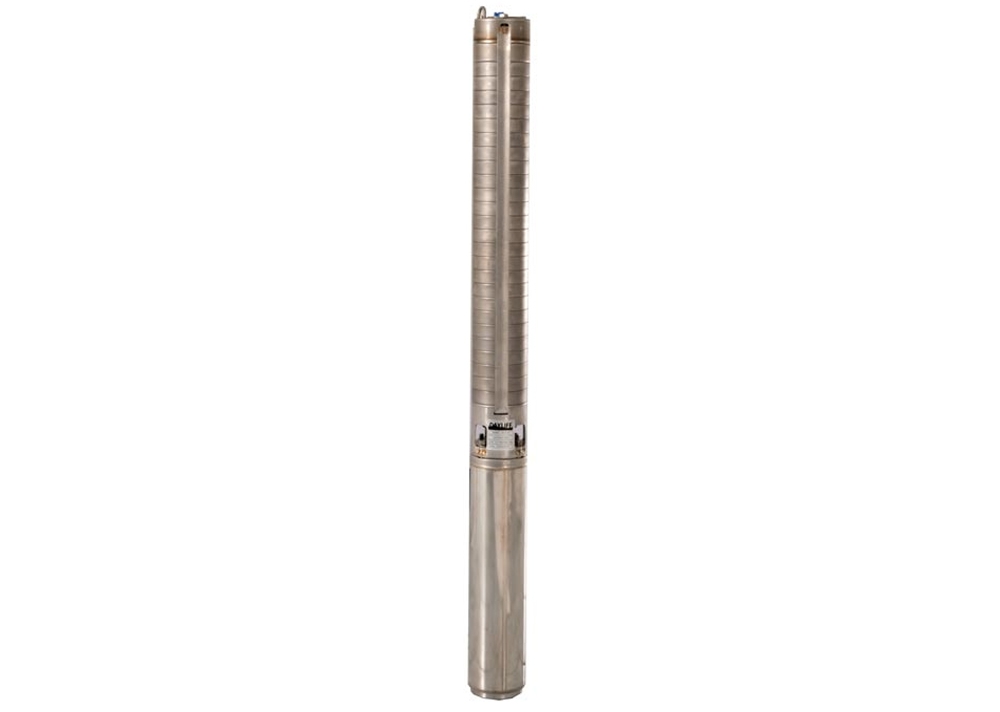

Dayliff DS 14 pumps are specially engineered to deliver a reliable water supply from a wide range of sources, particularly from boreholes.
Dayliff DS 14 Pump Construction
The design includes multistage impellers and stainless steel components with rubber bearings. The motor is fitted beneath the pump and connected to a strainer, which allows suction.
Motor Specifications
The motor is coupled to a sealed liquid-cooled 2-pole asynchronous squirrel cage motor constructed from stainless steel.
Single-phase motors should be equipped with purpose-designed Dayliff SCM control boxes to prevent dry runs and voltage fluctuations.
Three-phase motors require a remote DOL starter; a Dayliff SCT electronic pump controller is recommended for pump care from low level, overload, and irregular power supply.
Enclosure Class: IP68
Insulation Class: F
Speed: 2900 rpm
Operating Conditions
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibers.
Max. Liquid Temperature: DS wet end 50°C
Max. Water Depth: 200m
Min. Borehole Diameter: 104mm
| Model | Motor | Full Load Current (A) | Start Current (A) | Dimensions (mm) | Weight (kg) | |||||||
| A | B | C | ||||||||||
| kW | HP | 1x240 | 3x415 | 1x240 | 3x415 | 1x240 | 3x415 | 1x240 | 3x415 | |||
| DS 14/7 | 2.2 | 3 | 15 | 5.6 | 45 | 22 | 1193 | 1075 | 558 | 440 | 635 | 22 |
| DS 14/13 | 4 | 5.5 | - | 9.5 | - | 49 | - | 1639 | - | 614 | 1025 | 33 |
| DS 14/18 | 5.5 | 7.5 | - | 13.7 | - | 59.6 | - | 2034 | - | 684 | 1350 | 40 |
| DS 14/25 | 7.5 | 10 | - | 18.9 | - | 96 | - | 2569 | - | 764 | 1805 | 48 |
