Description

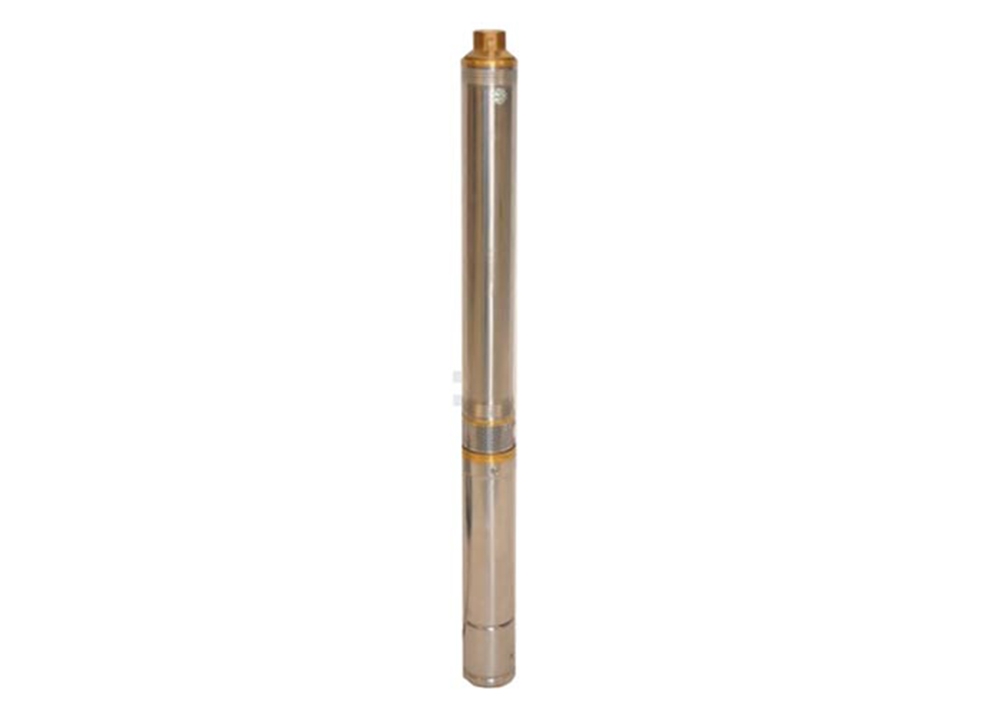

Dayliff D3SP1 pumps are compact 3” diameter submersible multistage centrifugal pumps specifically designed for small scale water supplies from boreholes and wells.
Dayliff D3SP1 Pump Construction
- Impellers: engineering plastic
- Diffusers: engineering plastic
- Inlet and Outlet Chambers: Brass
- Pump Sleeve: Stainless Steel
- Motor: Stainless Steel
All pumps are provided with 20 m cable and a control unit.
Motor Specifications
The pump is connected to a two-pole sealed motor with copper windings.
A separate control unit is included, which incorporates an isolator, run indicator light, thermal overload protection and start capacitor which can be connected directly to mains power.
We recommend a Dayliff AVS or similar power controller for additional voltage fluctuation protection.
Enclosure Class: IP68
Insulation Class: B
Speed: 2900 rpm
Voltage: 1X240V
Operating Parameters
- Pumped Liquid: Thin, clean, chemically non-aggressive liquids
- Max Liquid Temperature: 40°C
- Max Ambient Temperature: 50°C
- Max Working Pressure: 35m
- Min Borehole Drive: 100mm

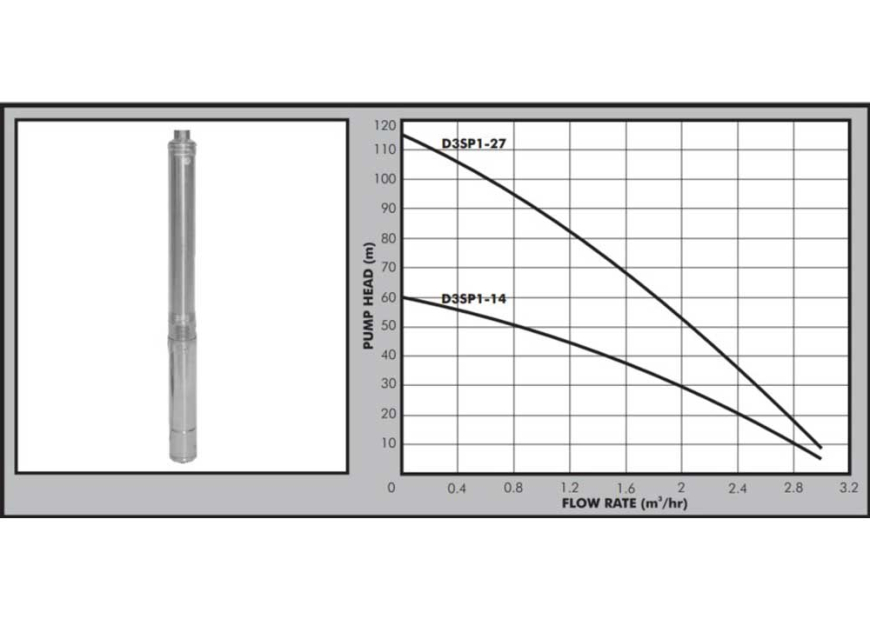

Product Data Sheet
| Model | Motor | Max Current (A) | Outlet DN (") | Dimensions (mm) | Weight (kg) | ||
| kW | HP | D | H | ||||
| D3SP1-14 | 0.37 | 0.55 | 3.3 | 1 | 76 | 85 | 12 |
| D3SP1-27 | 0.75 | 1 | 6.3 | 106 | 14 | ||
