Description

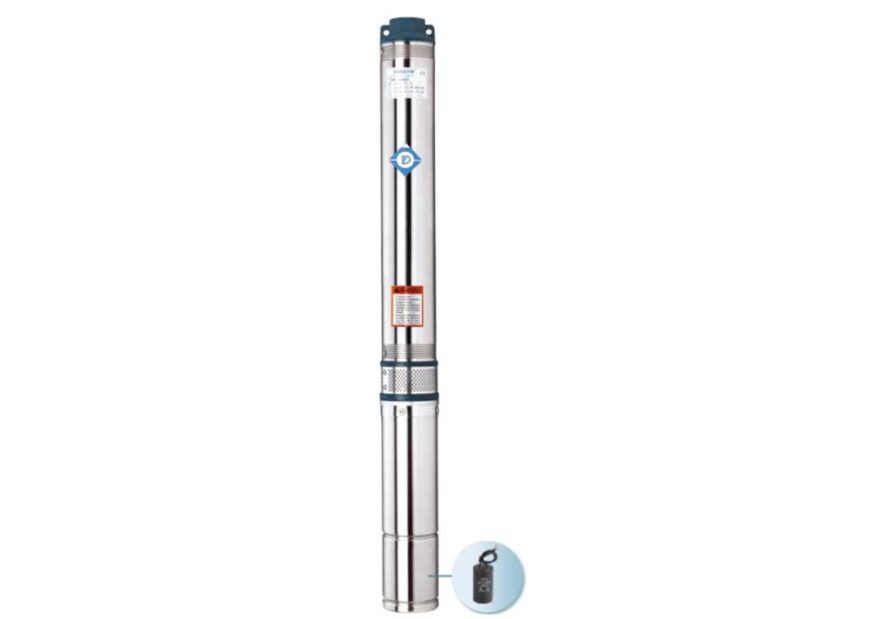

The Dayliff DSD3E range of submersible multistage centrifugal pumps are specially designed for domestic water supply from wells and boreholes.
Dayliff DSD3E Pump Construction
- Impellers: Plastic
- Diffusers: Plastic materials
- Delivery Port: Cast Iron
- Suction Chamber: Cast Iron
- Shaft : AISI 304 Stainless Steel
- Pump Sleeve : AISI 304 Stainless Steel
- Shaft: AISI 304 Stainless Steel
These corrosion-resistant materials, together with advanced hydraulic design, provide the pumps with excellent sand-handling capabilities for durability and high performance.
All these pumps come with a 30 m cable.
Motor
The pump is coupled to a sealed liquid-cooled 2-pole asynchronous squirrel-cage motor constructed of stainless steel. Motors are supplied complete with an inbuilt capacitor and electrical overload protection.
Enclosure Class: IP68
Insulation Class: B
Voltage: 1x240V
Speed: 2850 rpm
Operating Conditions
- Pumped liquid: Thin, clean and chemically non-aggressive liquids
- Max. Water temperature: +35° C
- Max. immersion depth: 150m
- Min. borehole diameter: 110 mm
- Max Particle Size: 2.4mm

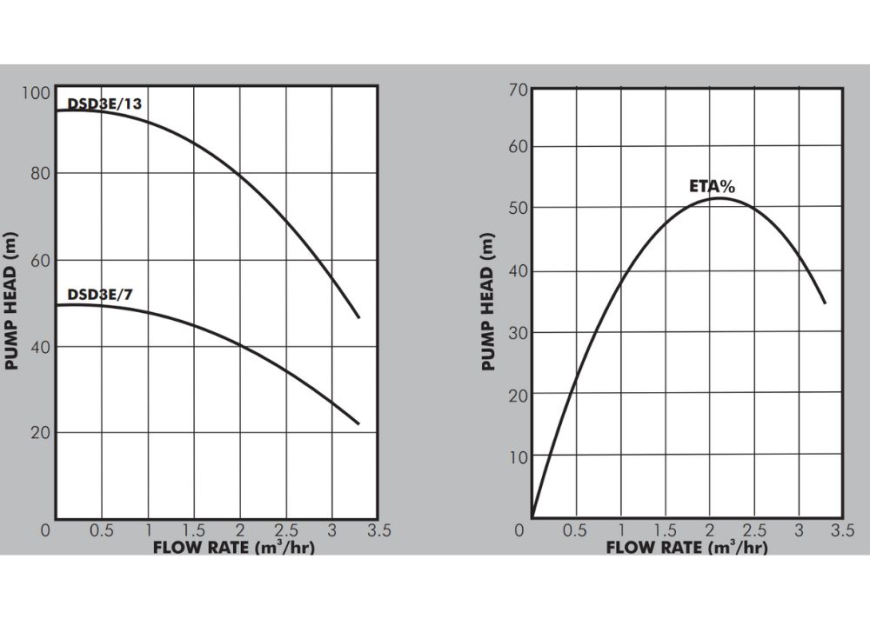

Product Data Sheet
| Model | Motor | Current (A) | Istat/1 | DN (") | Dimensions | Weight (kg) | ||
| kW | HP | A | D | |||||
| DSD3E/7 | 0.37 | 0.5 | 2.7 | 4 | 1¼ | 396 | 685 | 9 |
| DSD3E/13 | 0.75 | 1 | 5 | 518 | 837 | 12 | ||
