6SR-Submersible Borehole Pumps
6” Submersible Pumps
| Pump Model | Power | Head | Max flow rate |
| 6SR12/28 | 15Kw | 390m | 19.8m³/h |
| 6SR18/26 | 22Kw | 352m | 27m³/h |
| 6SR27/27 | 30Kw | 367m | 36m³/h |
| 6SR44/20 | 22Kw | 310m | 60m³/h |
Features
- More Resistant To Abrasion (Reservoirs, Rivers, Lakes)
- Horizontal Installation – Up to 12 Stages, 11kW Motors
- Can be Installed in 6” Cased Boreholes
- Sand Content at 100g/m3 of Water
- Impeller – Noryl (Coated With Sand Resistance Elastomer)
- Diffuser – Norly
- Increased Hydraulic Efficiency
Inquire about this product
Description

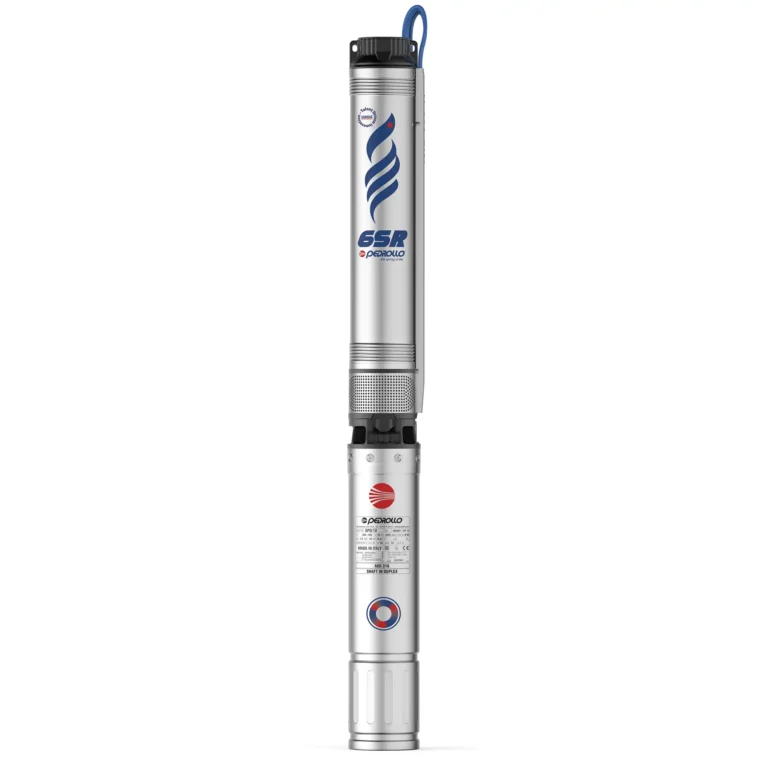

PEDROLLO 6SR is a range of submersible borehole pumps designed for water suction from boreholes but can also work in other submersible applications. These pumps are highly efficient and reliable, thus suitable for industrial, civil, and agricultural applications, such as water distribution coupled with pressure tanks, irrigation, pressure boosting, fire-fighting systems, and more.
6SR Specifications
- Max flow rate: 60 m³/h
- Maximum Head: 390 m.
- Liquid temperature: up to +35 °C
- Maximum sand content: 100 g/m³
- Maximum operating depth below water level: – 200 m with 6PD motors
- 150 m with 6PSR motors
- Ingress Protection Rating: IP 68
Pump Construction
- Delivery Suction: Cast Iron
- Pump Sleeve: Stainless steel AISI 304
- Impellers: Noryl
- Diffusers: Noryl
- Shaft: Stainless Steel
- Motor Bracket: Cast Iron
Pump Data
| Model | Power(kW) | Current (A) | DN(“) | Dimensions (mm) | Weight (kg) | ||
| kW | HP | H1 | H2 | ||||
| 6SR12/11 | 5.5 | 7.5 | 13 | 3 | 849 | 667 | 61 |
| 6SR12/15 | 7.5 | 10 | 17 | 1068 | 698 | 67 | |
| 6SR12/18 | 9.2 | 12.5 | 22 | 1198 | 731 | 73 | |
| 6SR12/21 | 11 | 15 | 24 | 1328 | 826 | 84 | |
| 6SR12/25 | 15 | 20 | 32 | 1502 | 894 | 96 | |
| 6SR12/28 | 1632 | 98 | |||||
Product Data Sheet
