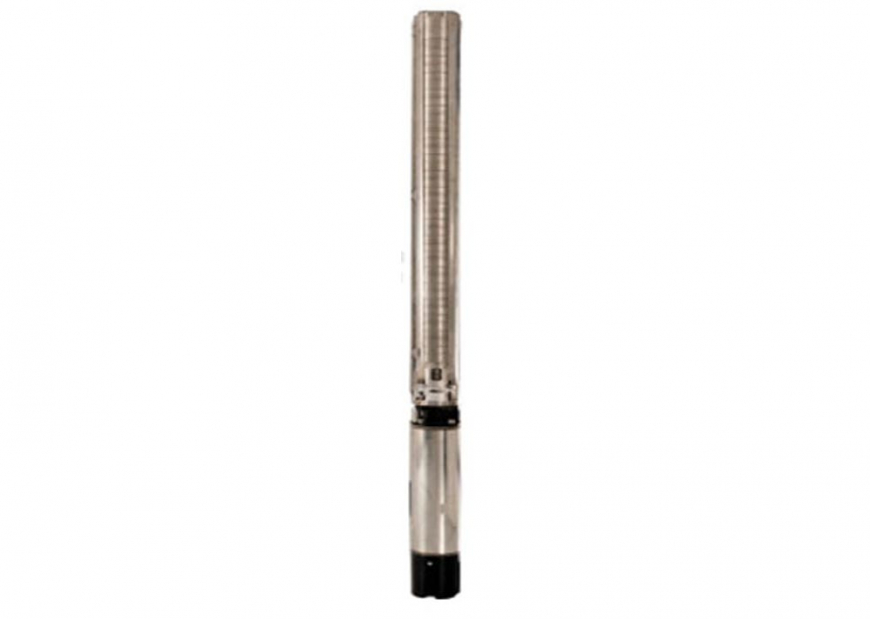

The Dayliff DS 60 range are proven centrifugal submersible pumps with enhanced capacity for moderate water supply requirements. These pumps are engineered to operate in deep boreholes where consistent water flow and durable performance are required.
Dayliff DS 60 Features
- ⦁ Robust stainless steel build
⦁ high-efficiency design for dependable performance in borehole water extraction.
⦁ Rubber bearings, which are lubricated by water.
⦁ Submersible motor beneath the pump that powers the pump.
⦁ A strainer between the pump and motor for suction.
Motor Specifications
The pump is connected to a sealed liquid-cooled 2-pole asynchronous stainless steel motor. A remote starter is ideal for the motor and an additional quick tripping control relay if a power surge is possible. DOL starters are recommended since submersible motors have low starting torques.
Enclosure Class: IP68
Insulation Class: F
Voltage: 3x415V
Speed: 2900 rpm
OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibres.
Max. Liquid Temperature: DS wet end-50°C
Max. Water Depth: 300m
Min. Borehole Diameter: 200m

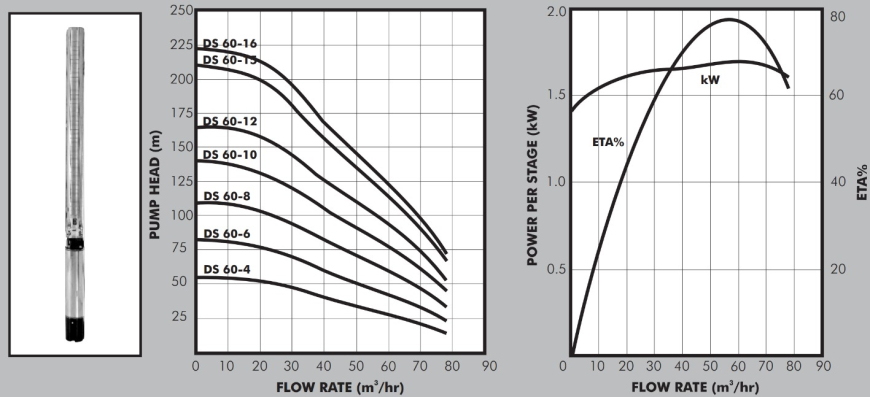

| Model | Motor | Full Load Current (A) | Istart/I | Dimensions (mm) | Weight (kg) | ||||
| kW | HP | A | B | C | E* | ||||
| DS 60-4 | 7.5 | 10 | 16.5 | 5.0 | 1382 | 660 | 722 | 149 | 44 |
| DS 60-6 | 11 | 15 | 24.2 | 4.8 | 1678 | 730 | 948 | 71 | |
| DS 60-8 | 15 | 20 | 32 | 5.0 | 1959 | 785 | 1174 | 82 | |
| DS 60-10 | 18.5 | 25 | 40 | 5.5 | 2260 | 860 | 1400 | 94 | |
| DS 60-12 | 22 | 30 | 47 | 5.1 | 2546 | 920 | 1626 | 105 | |
| DS 60-15 | 26 | 35 | 58 | 4.9 | 2800 | 1157 | 1965 | 175 | |
| DS 60-16 | 30 | 40 | 64.1 | 4.7 | 3128 | 1050 | 2078 | 126 | |
