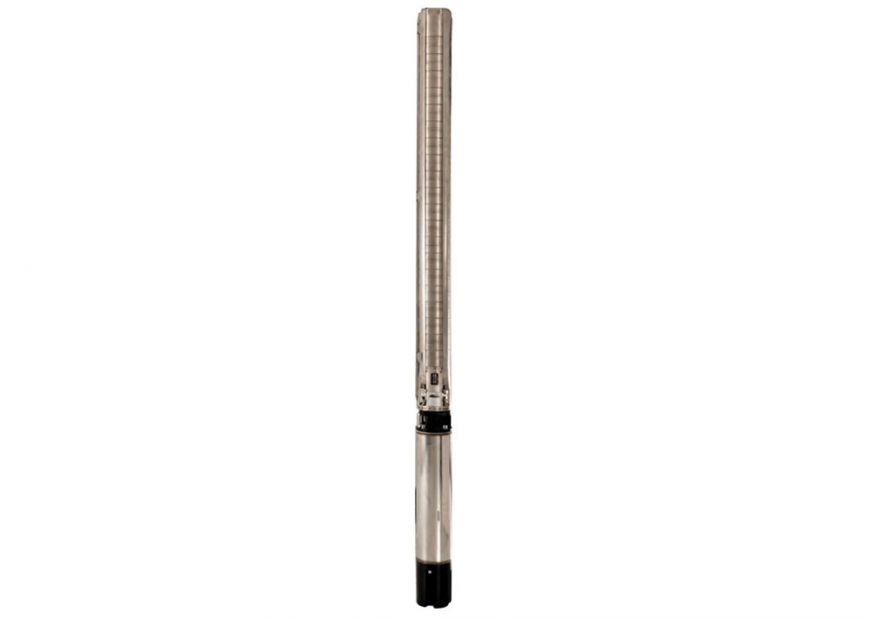

Dayliff DS 46 is a high-quality multistage centrifugal impeller designed specifically for borehole water supply applications. Designed for thin, clean, chemically non-corrosive water without solids or fibers, the DS 46 is ideal for domestic and light commercial applications. Its multistage design ensures steady delivery and energy-efficient operation.
Dayliff DS 46 Pump Construction
All the parts are made from AISI 304 stainless steel except for the water-lubricated rubber rings.
A submersible motor is fitted beneath the pump, and suction occurs through a strainer between the pump and motor.
Motor
The pump is coupled to a sealed liquid-cooled 2-pole asynchronous motor made of stainless steel. The motor requires a remote starter and a quick-tripping control relay for protection against voltage fluctuations.
DOL starters are recommended because of the low torques of submersible pump motors. A Dayliff SCT pump controller is ideal for comprehensive pump control, such as low-level motor overload and irregular power supply.
Enclosure Class: IP68
Insulation Class: F
Voltage: 3x415V
Speed: 2900 rpm
OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibers.
Max. Liquid Temperature: DS wet end—50°C
Max. Water Depth: 300m
Min. Borehole Diameter: 200m
| Model | Motor | Full Load Current (A) | Istart/I | Dimensions (mm) | Weight (kg) | ||||
| kW | HP | A | B | C | E* | ||||
| DS 46-5 | 7.5 | 10 | 18.9 | 5 | 1495 | 660 | 835 | 149 | 62 |
| DS 46-7 | 11 | 15 | 24.2 | 4.8 | 1791 | 730 | 1061 | 149 | 74 |
| DS 46-10 | 15 | 20 | 32 | 5 | 2185 | 785 | 1400 | 149 | 86 |
| DS 46-12 | 18.5 | 25 | 40 | 5.5 | 2486 | 860 | 1626 | 149 | 99 |
| DS 46-15 | 22 | 30 | 47 | 5.1 | 2885 | 920 | 1965 | 149 | 111 |
| DS 46-17 | 26 | 35 | 58 | 4.9 | 3100 | 1157 | 2191 | 149 | 120 |
| DS 46-19 | 30 | 40 | 64.1 | 4.7 | 3467 | 1050 | 2417 | 149 | 133 |
