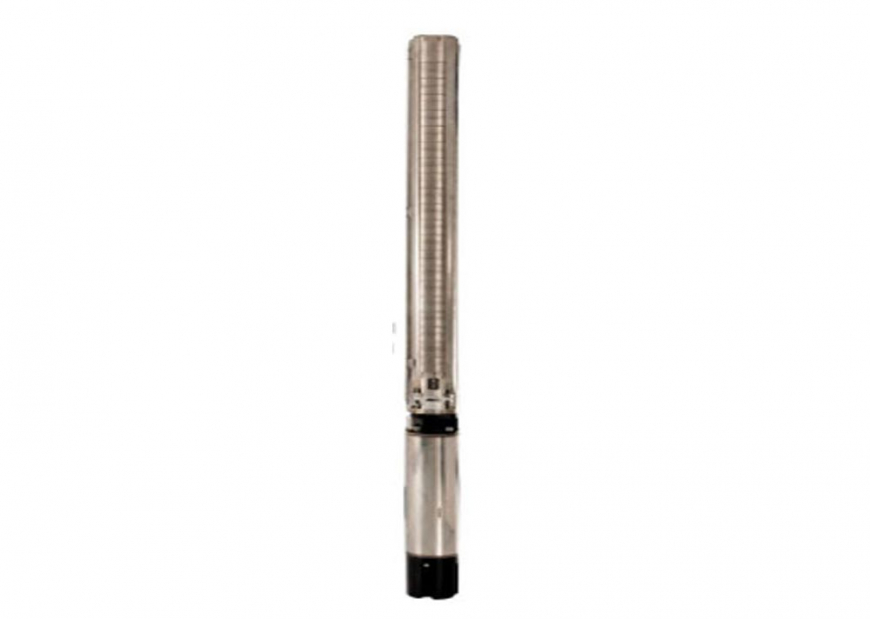

Dayliff DS 30 submersible pumps are high-performance multistage centrifugal impeller pumps specifically designed for borehole applications.
Dayliff DS 30 Pump Construction
The pump is made up of stainless steel parts and water-lubricated rubber bearings.
A submersible motor is fitted beneath the pump, and suction is through a strainer between the pump and motor.
MOTOR
The pump is connected to a 2-pole asynchronous sealed liquid-cooled motor made of stainless steel. The motor requires a remote starter, and in case of an inconsistent power supply, an additional quick tripling control relay is recommended.
A DOL starter is recommended due to low starting torques of submersible motors.
Enclosure Class: IP68
Insulation Class: F
Speed: 2900 rpm
Operating Conditions
Pumped liquid: Thin, chemically non-aggressive liquids without solid particles or fibres
Max. Liquid Temperature: DS wet end—50°C
Max. Water Depth: 300m
Min. Borehole Diameter: 200mm
| Model | Motor | Full Load Current (A) | Istart/I | Dimensions (mm) | Weight (kg) | ||||
| kW | HP | A | B | C | E* | ||||
| DS 30-8 | 7.5 | 10 | 18.9 | 5 | 1816 | 660 | 1038 | 142 | 49 |
| DS 30-13 | 11 | 15 | 24.2 | 4.8 | 2248 | 730 | 1518 | 80 | |
| DS 30-17 | 15 | 20 | 32 | 5 | 2687 | 785 | 1902 | 93 | |
| DS 30-21 | 18.5 | 25 | 40 | 5.2 | 3146 | 860 | 2286 | 107 | |
| DS 30-26 | 22 | 30 | 47 | 5.1 | 3686 | 920 | 2766 | 122 | |
