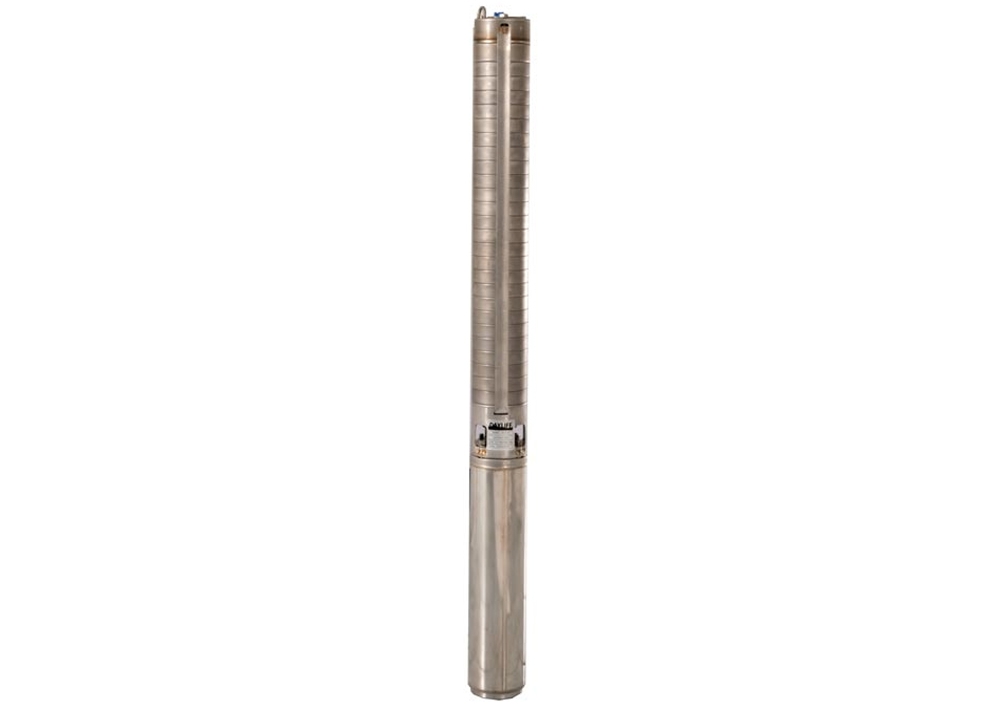

Dayliff DS 5 multistage centrifugal impeller pumps are designed specifically for borehole supply applications.
Dayliff DS 5 Pump Construction
These pumps are built from stainless steel parts and include rubber bearings. A submersible motor is close-coupled to the pump with a strainer in between that allows suction to occur.
The pump is coupled to a sealed, liquid-cooled 2-pole asynchronous motor designed from stainless steel.
Dayliff DS 5 Motor Features
The pump is coupled to a sealed liquid-cooled 2-pole asynchronous squirrel-cage motor constructed of stainless steel. Single-phase motors are supplied complete with purpose-designed control boxes, while three-phase motors require a remote starter. A DAYLIFF Electronic Pump Controller is recommended for comprehensive pump control, including wireless low level, motor overload, and irregular power supply protection.
Enclosure Class: IP68
Insulation Class: F
Speed: 2900 rpm
OPERATING CONDITIONS
- Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibers.
- Max Liquid Temperature: DS wet end -50°C
- Max Water Depth: 300 m-6″, 200 m-4″
- Minimum Borehole Diameter: 110mm

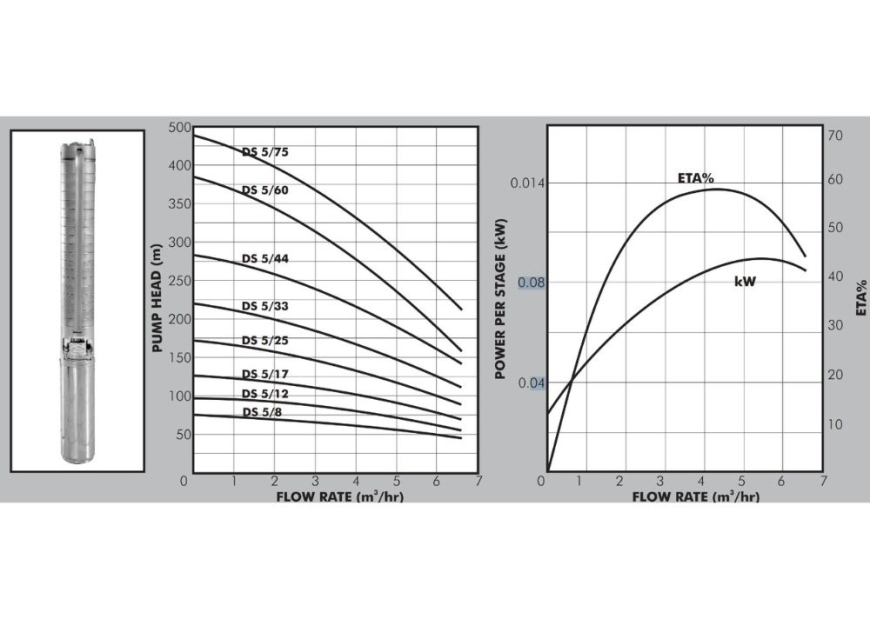

| DS 5/8 | 0.75 | 1.0 | 6.2 | 20 | 335 | 375 | 710 | 11.5 | ||||
| DS 5/12 | 1.1 | 1.5 | 8.1 | 3.1 | 32 | 16 | 419 | 395 | 375 | 814 | 794 | 13.2 |
| DS 5/17 | 1.5 | 2.0 | 10.1 | 4.0 | 35 | 20 | 524 | 440 | 395 | 964 | 919 | 16 |
| DS 5/25 | 2.2 | 3.0 | 15 | 5.6 | 45 | 22 | 692 | 558 | 440 | 1250 | 1132 | 21.8 |
| DS 5/33 | 3.0 | 4.0 | - | 7.4 | - | 45 | 868 | - | 558 | - | 1426 | 27.2 |
| DS 5/44 | 4 | 5.5 | - | 9.5 | - | 55 | 1099 | - | 614 | - | 1713 | 35.4 |
| DS 5/60 | 5.5 | 7.5 | - | 13.7 | - | 70 | 1460 | - | 684 | - | 2144 | 60 |
| DS 5/75 | 7.5 | 10 | 16.5 | 84 | 2171 | 2935 | 764 | 69 |
