Borehole Pump Installation in Kenya

Our borehole pump installation and other related waterworks are done by a team of qualified technicians. We use borehole pump lowering trucks with winches designed to handle different sizes of pumps.

Call 0711138312

Borehole Pump Installation by Aqua Hub

We conduct professional borehole pump installation, equipping, maintenance and rehabilitation.

Borehole pumps from Aqua Hub Kenya are manufactured to the highest standards using robust materials. With proper installation and correct use, the pumps operate efficiently for many years.

Call 0711138312

Borehole Pumps in Kenya | Which One is Best for You?

Submersible Pumps

• Most common for deep boreholes over 30 m.
• Installed inside the borehole.
• Efficient and reliable for domestic and irrigation use.

Solar Submersible Pumps

• Powered by solar panels.
• Excellent for rural or off-grid locations.

Manual/Hand Pumps

• Low-cost solution for shallow boreholes in applications with low water needs.

Steps for Borehole Pump Installation in Kenya

1.      Pre-Installation Assessment

Before pump installation, assess the borehole depth, diameter, static water level and yield. These assessments ensure correct pump selection and sizing.

2.      Sizing the Pump

The correct pump is sized as per the water needs and power availability.

3.      Pump and Delivery Pipe Installation

Lower the pump and deliver pipes carefully while ensuring the pump sits below the dynamic water level. This helps to prevent dry running of the pump.

4.      Electrical Connection

Connect the submersible pump cable to the pump controller.

Electric cable wiring should be done by a professional electrician.

5.      Test Pumping

After installation, technicians test flow rate, pressure, electrical safety, and system control performance.

6.      Commissioning

The client is trained on how to operate and maintain the borehole pump and control devices.

How Borehole Pump Installation is Done

Borehole pump installation is done by using a steel rope tied to a winch on a truck to lower the pump inside the borehole.

Check the borehole depth and straightness to ensure no obstruction before you install the pump.

Pump lowering is done carefully, and in case of obstruction, the pump should be removed and an investigation done to avoid cable or pump damage.

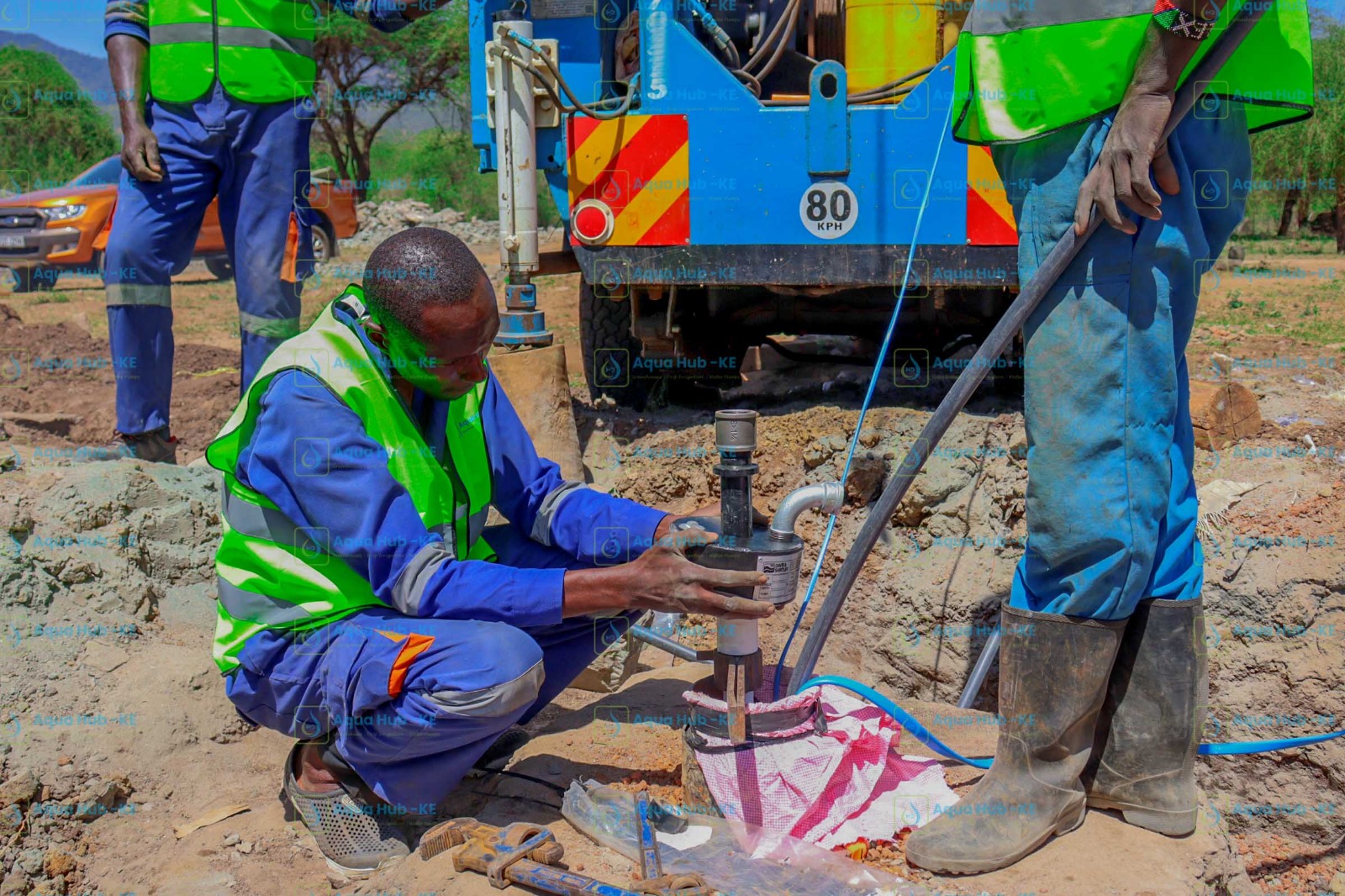

Borehole Pump Installation | Pump Lowering Process

Fit the first starter pipe into the pump outlet and ensure a tight, leak-free joint while the pump is on the surface. The thread on the starter pipe should not be longer than the threads in the pump outlet, or it will interfere with the operation of the non-return valve.

Screw the starter pipe into a robust adaptor hook attached to the winch or tripod cable and lower the pump and pipe section into the borehole.

When fully lowered, hold the pipe below the socket with a clamp, disconnect the lifting hook and attach it to the next pipe length, ensuring a watertight connection. Ensure the pipe joint is fully home and repeat until all pipes are lowered.

While the pipes are being lowered, bind the drop cable, low-level cable (if fitted), and airline (if fitted) to the drop pipes with a PVC cable clip at 2 m centres.

Borehole Pump Installation Kit

A standard borehole pump installation kit often includes:

• Submersible pump
• Control panel and starter
• Cables and connectors
• UPVC Pipes
• Submersible pump cable
• Non-return valve
• Pressure tank/control switch

How to Choose the Right Borehole Pump

Understanding Water Needs & Demand

Your daily water needs, right from household to irrigation requirements, determine the pump flow rate. Large households require large pumps.

Power source

Decide whether grid electricity, solar, or hybrid power best fits your location. Solar offers lifetime savings with zero energy costs but requires proper panel sizing.

Matching Pump to Borehole Depth

Pump type and size must align with the borehole’s static water level and total depth. Deep boreholes require pumps capable of delivering high head output.

How to Size a Borehole Pump

Calculate Total Dynamic Head (TDH)

TDH is the total energy the pump must overcome to lift water. It includes static water column depth, drawdown, elevation to your tank, and friction losses in pipes. Accurate calculation ensures efficient pump selection and long-term reliability.

Determine the Daily Water Requirements

Evaluate your water needs by summing up all usage patterns to get a realistic flow rate. This helps match pump curves to your water needs.

Determine the requirement pump flow rate

Match the required flow rate to the pump curve to get an appropriate pump.

Borehole Pump Prices in Kenya

The cost of borehole pumps in Kenya starts from as low as KES 15,000 to KES 150,000 or more depending on the size and model.

Solar vs Electric Cost Comparison

Solar has higher upfront costs but low operating expenses. They are ideal where grid power is unreliable.

Installation Cost Breakdown

Borehole pump installation is between KES 15,000 and 50,000 depending on depth and site complexity.

Maintenance of borehole Pump and Accessories

• Inspect electrical connections
• Clean pump if sediment is present
• Test controls & pressure settings regularly

Well-maintained pumps last longer and reduce downtime.

Common Issues and Fixes

Low flow rate or unusual noises often indicate damaged impellers or blockage in pipes. Monitor and replace the pump in case of failure.

Faulty electrical wiring. Always let a qualified electrician handle cable wiring using the manufacturer’s manual.

Accumulated silt: consider flushing the borehole after every 5 years.

Frequently Asked Questions

How much does a borehole pump cost in Kenya?

KES 15,000 – KES 150,000.

How to size a pump for a borehole?

Match the required flow rate to the pump curve to get an appropriate pump.

How many solar panels for a 1.5 hp submersible pump?

3–5 panels.

How do I choose a borehole pump?

Consider the borehole depth, daily water requirement, flow rate and power.

How much electricity is consumed by a 1.5 hp submersible pump?

5,000 – 8,400 watts.

How do I know which water pump to buy?

Consider the intended use for the pump. For instance, if you want to pump water from a borehole, you need a borehole pump.

How long does a borehole pump last?

15 years or more.

Why is my borehole not pumping water?

Common reasons include a “dropped” water table, clogged pipes, or faulty wiring.

How much does it cost to equip a 100 m deep borehole in Kenya?

Between KES 150,000 and KES 350,000, including the pump, pipes, cables, and labour.

Where can I buy borehole water pumps in Kenya?

Aqua Hub Kenya.
