Description
DAYLIFF DS 2 submersible pumps are specifically engineered for borehole supply applications. Our DS2 pump models are available at affordable rates.
Dayliff DS 2 Pump Construction
All parts are constructed from stainless steel and rubber bearings.
Features of Dayliff DS 2
- Multistage impeller design—for high-pressure flow
- Stainless steel construction—to prevent corrosion and ensure long-lasting performance
- Submersible motor—positioned beneath the pump
- A strainer—between the pump and the motor—allows suction of water.
- liquid-cooled motor—sealed and oil-filled 2-pole asynchronous motor. The motor is submersible and is placed beneath the pump.
Recommended Motor Protection
Single-phase motors come complete with specially designed control boxes, whereas three-phase motors require a remote starter.

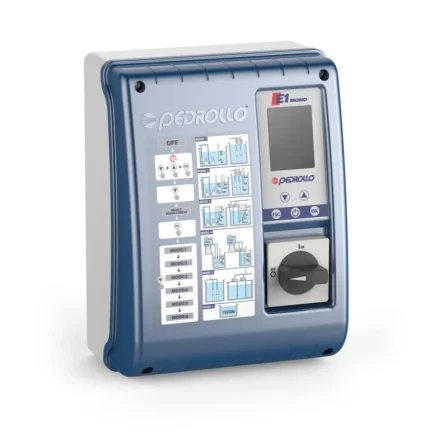

For optimal pump management, a DAYLIFF Electronic Pump Controller is recommended for comprehensive control, including wireless low-level detection, motor overload protection, and safeguarding against irregular power supply.
Enclosure Class: IP68
Insulation Class: F
Speed: 2900 rpm
Operating Conditions
- Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibres.
- Max Liquid Temperature: DS wet end—50°C.
- Max Water Depth: 200m
- Minimum Borehole Diameter: 110mm
