SPRINKLER

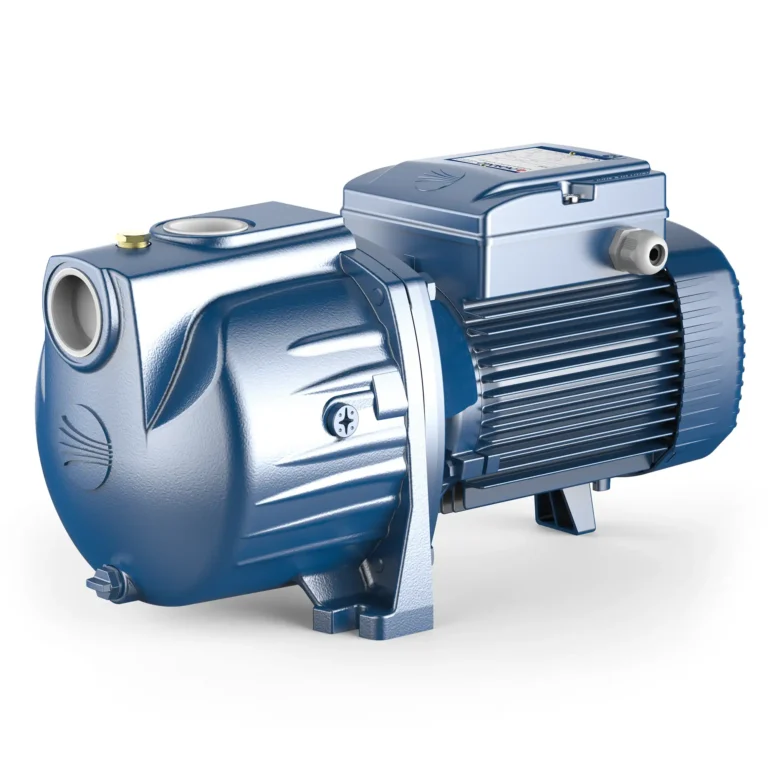

SPRINKLER – Self-Priming Centrifugal Pump
- 5 1.5 kW, 25.5, 18 m³/h
Features
- Pump Body: Cast Iron With Cataphoresis Treatment
- Diffuser & Impeller: Norly
- Winding Integrated Thermal Motor Protection
- Suction Lift: 9 m
- Application: Suitable for Pumping from Canals,
- Rivers, Reservoirs & Tanks, Domestic, Irrigation
- Drawing Water Even When Air is Present
Inquire about this product
Description
SPRINKLER is a self-priming pump designed to supply water even in air-filled sources. It has a user-friendly operation and dependable performance, making it ideal for domestic, irrigation, and business premises.
The three-phase pumps are equipped with newly developed electric motors designed to work with inverters.
which guarantee stable and quiet operation.
Efficiency class IE3 for three-phase motors and IE2 for single-phase motors, with class F insulation and IPX4 protection
PEDROLLO SPRINKLER Pump Construction
- Pump Housing: Cast Iron
- Impeller: Noryl™
- Shaft: Stainless steel AISI 431
- Pump Cover: Cast Iron
Technical Specifications
- Flow rate: up to 300 l/min (18 m³/h)
- Head: up to 22.5m
- Suction Head: up to 9 m
- Liquid Temperature: between -10 °C and +40 °C
- Ambient Temperature: up to +40 °C
- Maximum working pressure: 10 bar
- Motor: 2 poles
- Ingress Protection rating: IP X4
