Dayliff DSD 2

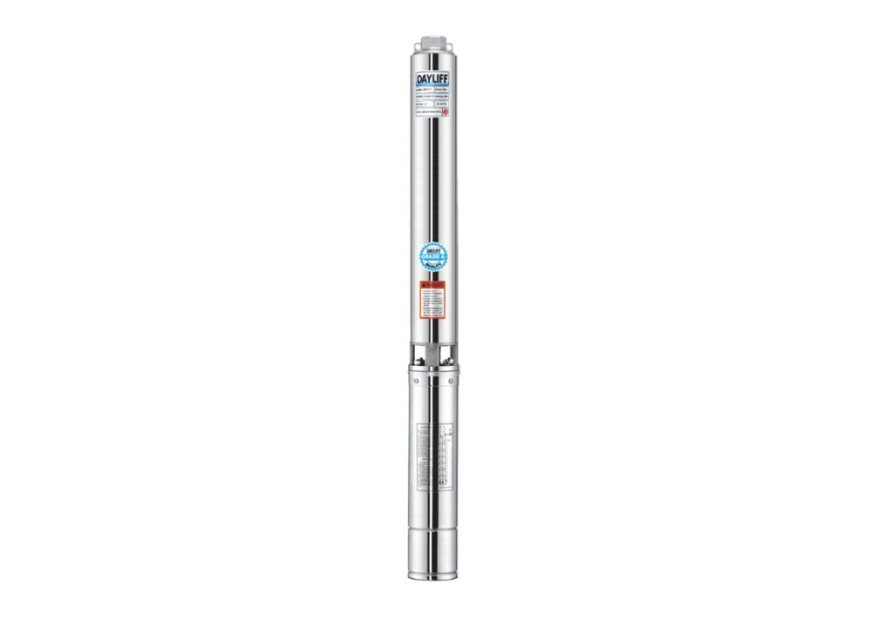

Dayliff DSD 2 submersible pump series are multistage centrifugal pumps engineered for water suction from wells and boreholes.

Pump Construction

• Impeller: Polycarbonate
• Diffusers: Polycarbonate
• Suction Chambers: AISI 201 Stainless Steel
• Shaft: AISI 304 Stainless Steel
• Pump Housing: AISI 304 Stainless Steel

These pump construction materials with the advanced hydraulic design provide the pumps with excellent sand handling capacity and long operational efficiency.

DSD 2/9, 2/15, and 2/18 models come with a 30 m cable and a control box.

Dayliff DSD 2 Features

The pump is coupled to a sealed liquid-cooled 2-pole asynchronous squirrel-cage motor constructed of stainless steel.

Single-phase motors require Dayliff SCM control boxes for operation and protection against overload, dry running, and over/under voltage.

Three-phase motors requires a remote DOL starter; A DAYLIFF SCT electronic Pump Controller for comprehensive pump control, including low-level, motor overload and irregular power supply protection

Enclosure Class: IP68
Insulation Class: B
Speed: 2850 rpm
Voltage: 1x240V

PUMP KITS

Pump kits are available for the indicated models, including the pump, quick connection fittings, cast aluminum wellhead cover, safety rope, and Dayliff SCM/SCT controller. DSD 2/9 Kit comes with 70 m cable, DSD 2/15 Kit with 90m and DSD 2/18 with 120 m cable

Dayliff DSD 2 Operating Conditions

Pumped liquid: Thin, clean, chemically non-aggressive liquids
Max. Water temperature: +35° C
Max. immersion depth: 150m
Min. borehole diameter: 110 mm
Max Particle Size: 2.4mm
