Automatic Water Pump with Pressure Gauge | Price by Aqua Hub
An automatic water pump costs from KES 6,600 for a booster model and up to KES 99,800 for the largest booster, while submersible models run from KES 18,000 to KES 67,500.
It switches on by itself when the pressure in your pipes falls, then switches off once the pressure returns to the level you set. Meanwhile, a pressure gauge on the pipework shows that pressure at all times. As a result, water flows at every tap without anyone walking to a switch.
Aqua Hub Kenya is one of the best places to buy an automatic water pump in Kenya. We stock booster and submersible models in many sizes, so our team can match one to your tank or borehole. Tell us about your water source on +254790719020 or at info@aquahubkenya.co.ke, and we quote the right model.
Automatic Water Pump Cost in Kenya by Aqua Hub Kenya
Aqua Hub Kenya prices each automatic water pump by model and head. For that reason, the tables below list every booster and submersible model with its price, so you can compare them quickly. Use these prices as a budget guide, since our team confirms the exact price when you ring +254790719020.
Booster Automatic Water Pump Prices at Aqua Hub Kenya
| Model | Series | Price (KES) |
|---|---|---|
| DDP 60 | DDP | 6,600 |
| PKM 60 | PKM | 9,800 |
| DDP 65 | DDP | 15,600 |
| PKM 65 | PKM | 20,500 |
| PKM 80 | PKM | 36,500 |
| PKM 100 | PKM | 99,800 |
Start with the DDP 60 for the lowest price. Then move up the PKM models as your water demand grows.
Submersible Automatic Water Pump Prices at Aqua Hub Kenya
| Model | Flow (litres per hour) | Price (KES) |
|---|---|---|
| DW 1050 | 3,000 | 18,000 |
| SBH 1050 | 3,000 | 23,000 |
| DW 1100 | 2,500 | 20,000 |
| SBH 1100 | 2,500 | 26,000 |
| DW 1150 | 3,000 | 26,000 |
| SBH 1500 | 4,500 | 35,000 |
| DW 2000 | 3,000 | 35,000 |
| SBH 2000 | 4,500 | 42,000 |
| SBH 3000 | 4,500 | 55,000 |
| SBH 4000 | 4,500 | 67,500 |
Head is the height a pump lifts water, and every 10 m of head gives about 1 bar of pressure. Therefore, the DW 1050 (34 m) reaches about 3.4 bar, while the SBH 4000 (270 m) reaches about 27 bar. SBH models lift higher than DW models of the same power, and the larger SBH models deliver 4,500 litres per hour.
How an Automatic Water Pump from Aqua Hub Kenya Works with a Gauge
Because the pressure switch and the gauge work as a pair, an automatic water pump runs without supervision. The switch controls the motor, while the gauge lets you watch the result.
- You open a tap, and the pressure in the pipe drops.
- The pressure switch senses the drop and starts the motor.
- The pump pushes water into the pipework, and the gauge needle climbs.
- At the cut-out level, the switch stops the motor.
- You close the tap, and the pressure holds until the next use.
This cycle repeats all day without your input. Since the switch reacts only to pressure, the pump runs only when you use water. Hence, the motor lasts longer and your power bill stays low.
Reading the Pressure Gauge on an Automatic Water Pump from Aqua Hub Kenya
Because the needle shows the health of an automatic water pump system at a glance, you should check it each time you use water for a few days after installation. Use the readings below to understand what you see:
- Steady between cut-in and cut-out: The system is healthy.
- Falls quickly after the motor stops: A leak or a faulty valve is draining the pipes.
- Never reaches cut-out: The pump is too small, or the intake is blocked.
- Swings up and down fast: The motor is switching on and off too often.
- Reads very high: The cut-out is set too high, or the switch is faulty.
- Reads zero: The pump has no water, or the power has tripped.
Submersible water pump
Setting Cut-In and Cut-Out Pressure
Correct settings let your automatic water pump protect its motor and give steady flow. For safety, ask a qualified electrician to help, and follow these steps:
- Switch off the power and open the switch cover to note the current cut-in and cut-out values.
- Set the cut-in a little above the pressure your highest tap needs.
- Set the cut-out below the pump’s maximum pressure.
- Switch the power on and watch the gauge through one full cycle.
Our team gives you the maximum pressure for every model we sell. Thus, you can set the cut-out with confidence. Ring +254790719020, and we help you pick both settings.
Booster or Submersible: Choosing an Automatic Water Pump at Aqua Hub Kenya
Every automatic water pump suits a certain water source, so the right choice depends on where your water sits.
| Feature | Booster | Submersible |
|---|---|---|
| Water source | Tank or mains line | Borehole or deep well |
| Position | Above the water, near the tank | Inside the water |
| Main job | Raises pressure to taps and showers | Lifts water up from deep sources |
| Price range | KES 6,600 to 99,800 | KES 18,000 to 67,500 |
Choose a booster when water already reaches your property but arrives weakly. Likewise, select a submersible when you pump from a borehole or a deep well.
Sizing an Automatic Water Pump for Your Home or Farm
Because a pump that is too small struggles and one that is too large wastes money, you should size yout automatic water pump before you buy. Measure these figures first:
- The vertical lift from the water level to your highest outlet.
- The length of pipe between the pump and the outlets.
- The flow you need, in litres per hour.
- The number of taps and showers you run together
Pick a head above your vertical lift, since pipes also use up some pressure. For example, a borehole with water at 60m needs more than 60m of head. The DW 1100 offers 67m, but the SBH 1100 offers 95m and leaves a safer margin.
Fixing Low Pressure and Short Cycling with Help from Aqua Hub Kenya
Most pump problems show up on the gauge first, so use this list to find the cause:
- Low pressure at the taps: Check the intake for blockage and the pipes for leaks.
- Motor switching on and off often: Check for leaks and widen the gap between cut-in and cut-out.
- Pump runs but pressure never builds: Check for air in the suction line.
- Gauge needle stuck: Replace the gauge.
Then send a photo of your setup to info@aquahubkenya.co.ke, and our team points you to the fix.
Why Choose Aqua Hub Kenya for an Automatic Water Pump?
Home owners and farmers across Kenya buy from Aqua Hub Kenya because we pair clear specifications with fair prices on every automatic water pump. Every submersible model lists its power, head, flow and price, and our booster models start at KES 6,600. Besides pumps, we supply hoses, solar panels, pipes, fittings and filters, which lets you finish your water project with one supplier.
Our team also explains how the switch and the gauge work, so you set up your system correctly from day one. Consequently, you can share your tank size or borehole depth, and we recommend a model that fits. Order by calling +254790719020 or writing to info@aquahubkenya.co.ke whenever you are ready.
Frequently Asked Questions
What Is an Automatic Water Pump?
An automatic water pump is a pump with a pressure switch that starts and stops the motor by itself. As a result, it keeps the pressure in your pipes between two set levels.
How Much Does an Automatic Water Pump from Aqua Hub Kenya Cost?
An automatic water pump from Aqua Hub Kenya costs from KES 6,600 to KES 99,800, depending on the model. For this reason, call our team for the exact price.
What Does the Pressure Gauge Show?
The pressure gauge shows the water pressure in your pipes, usually in bar or psi. Thus, it tells you when the pump runs well and when it struggles.
Which Automatic Water Pump Suits a Borehole?
A submersible automatic water pump suits a borehole because it sits inside the water. Choose a head higher than the depth of the water, as in the DW and SBH models.
How Do I Set the Cut-In and Cut-Out Pressure?
Set the cut-in just above the pressure your highest tap needs, and set the cut-out below the pump’s maximum pressure. Then watch the gauge through one full cycle to confirm.
Why Does the Motor Keep Switching On and Off?
The motor keeps switching on and off when the pressure drops too fast after each stop. A leak is the usual cause, and a narrow gap between cut-in and cut-out also triggers it.

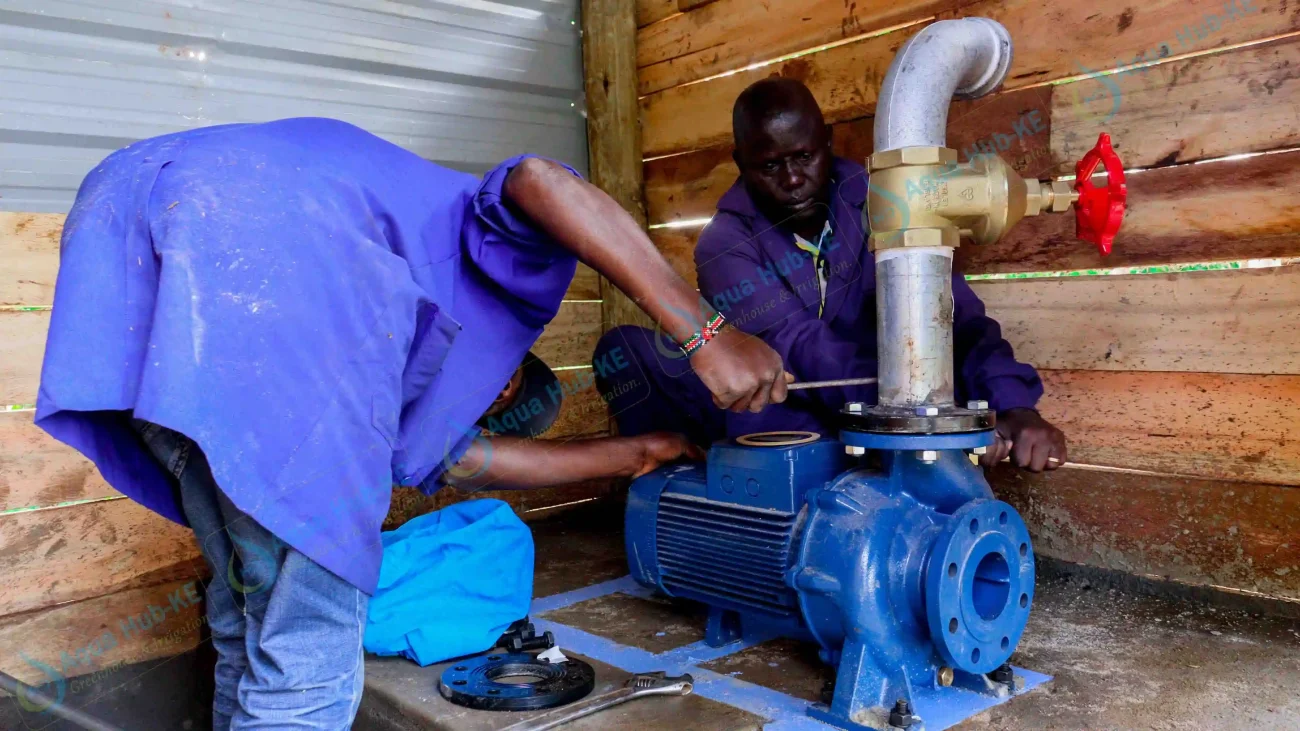

A domestic water pump being installed
Can a Booster from Aqua Hub Kenya Fix Weak Shower Pressure?
A booster from Aqua Hub Kenya can fix weak shower pressure by raising the pressure from your tank. Accordingly, match the model to the number of showers and taps you run.
How Much Head Do I Need?
You need a head above the vertical lift from the water to your highest outlet, plus extra for pipe friction. Since every 10 m of head gives about 1 bar of pressure, you can convert the figures easily.
How Often Should the Gauge and Switch Be Checked?
The gauge and switch should be checked every few months, and after any change in pressure. Also, replace a gauge that sticks or reads wrong.
Final Thoughts on Automatic Water Pumps from Aqua Hub Kenya
An automatic water pump starts and stops itself on pressure, and the gauge lets you watch the system at all times. Booster models raise the pressure from a tank, while submersible models lift water from a borehole. Furthermore, correct sizing, the right cut-in and cut-out settings, a clean intake and regular gauge checks keep the system running well for years.
Automatic water pumps from Aqua Hub Kenya cost from KES 6,600 to KES 99,800. Therefore, buy your pump from Aqua Hub Kenya, and our team confirms your exact price when you contact us on +254790719020 or at info@aquahubkenya.co.ke.
