Description

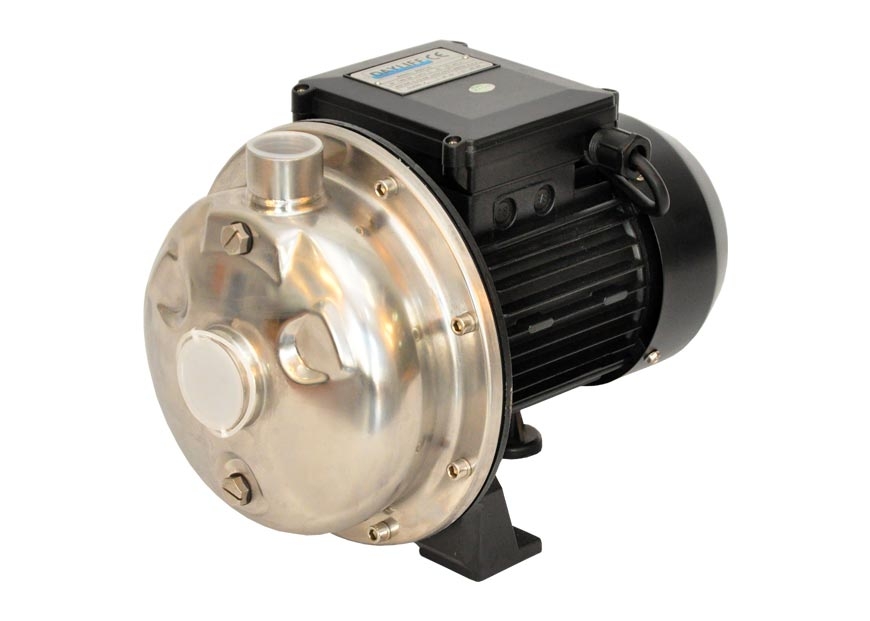

The Dayliff DDS pumps feature centrifugal impellers with non-self-priming and are designed for agriculture, drainage, and industrial transfer of highly pure, non-corrosive liquids.
Features of Dayliff DDS Pumps
Hydraulic end—stainless steel pump body and impeller for durable performance.
Single impeller and non-self-priming design
Motor Specs
The pump is close-coupled to a single-phase motor designed for continuous duty. It is provided with a thermal cutout for overload protection and can be connected directly to the mains power supply through a 13A power-on MCB.
Enclosure Class: IP54
Insulation Class: F
Voltage: 1x240V
Speed: 2900 rpm
OPERATING CONDITIONS
- Pumped Liquid: Thin, slightly aggressive liquids without solids or fibres
- Max Liquid Temp: 60°C
- Max Ambient Temp: 40°C
- Max Suction Lift: 9 m (at sea level)

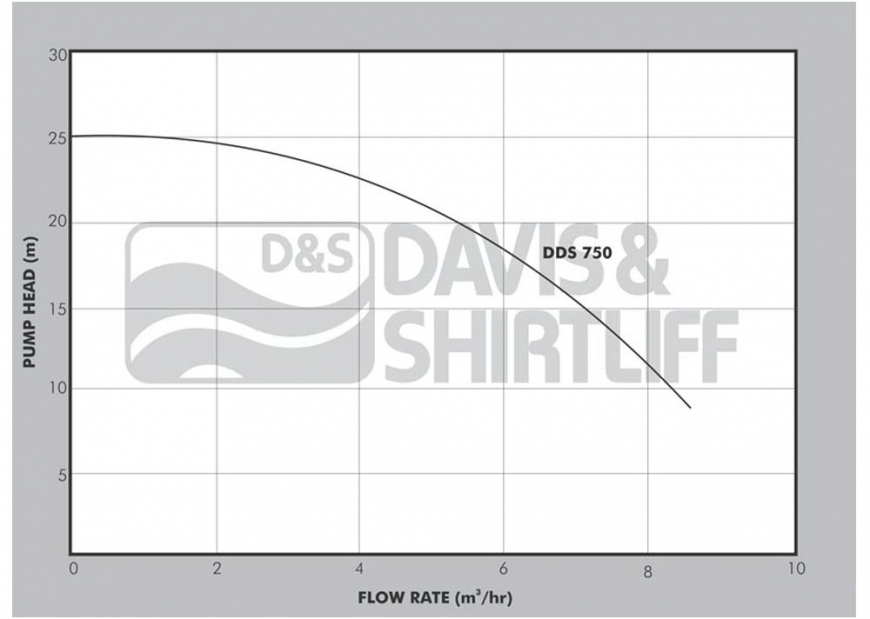

Product Data Sheet
| Model | Power(kW) | Current(A) | Inlet BSP(") | Outlet BSP(") | Dimensions (m) | Weight (kg) | |||||||
| A | B | C | F | H | N | N1 | W | ||||||
| DDS 750 | 0.75 | 5.2 | 1¼ | 1 | 52 | 82 | 213 | 315 | 232 | 120 | 158 | 92 | 14 |
