CP 230/250
Features
- Pump Body: Cast Iron
- Impeller: Brass CP 230 & Cast Iron for CP 250.
- Liquid temperature: -10 °C – + 90 °C
- IE3 Motor, IPX5
Technical Information
| Pump Model | Power | Head | Max flow rate |
| CP230C | 3kW | 30m | 51m³/h |
| CP230A | 5.5kW | 46m | 54m³/h |
| CP250B | 7.5kW | 57m | 48m³/h |
| CP250A | 11kW | 54m | 54m³/h |

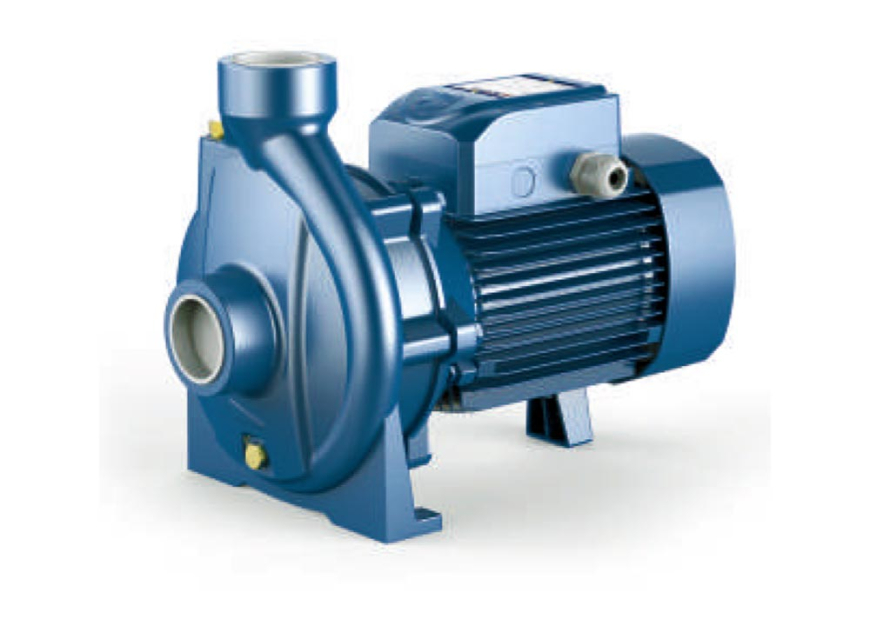

The Pedrollo CP 230/250 pumps are non-self-priming impeller pumps with internal motors. Provides efficient, quiet and long pumping operation thus reliable for boosting water pressure in home, industrial, agricultural irrigation and cooling systems. Pedrollo CP 230 and CP 250 pumps are ideal for handling clean water free from heavy sand, mud, or large particles.
Aqua Pumps range of pedrollo CP 230/250 includes CP230C, CP230A, CP230B, and CP250A. All these pump options are top rated and come at affordable rates.
Call 0790719020
Pump Construction
- Pump Body: Cast iron is strong thus resistant to mechanical wear and damage.
- Impeller: Cast iron for efficient and long-lasting performance
- Shaft: Stainless steel to prevent rust and wear
- Mechanical Seal: Ceramic/graphite for excellent leak protection
- Motor: Quiet, powerful, and designed for continuous operation
Features
The CP series is known for delivering high pressure with smooth, consistent flow. Depending on the model:
- Capable of pumping water to very high heads—ideal for tall buildings or sloping terrain
- Delivers excellent pressure even with long pipe networks
- Handles liquid temperatures up to around 60°C
- Energy-efficient motor that balances power with lower running costs
- Suitable for both continuous and intermittent use
Difference Between CP 230 & CP 250
Both pumps operate the same way but have varying features shown below.
CP 230
- Slightly lower pressure and flow compared to the CP 250
- Great for medium homes, small buildings, or moderate irrigation
CP 250
- Higher power output and higher water pressure
- Better for larger buildings, long pipe runs, or demanding irrigation systems
Advantages of Pedrollo CP 230/250
- Very high-pressure output
- Long-lasting cast-iron and brass build
- Quiet and smooth operation
- Works efficiently even on challenging plumbing systems
- Easy to install and maintain
- Trusted globally for domestic and commercial use
These pumps are built to last and deliver consistent performance year after year.
Why Choose Pedrollo CP 230/250
Choose the Pedrollo CP 230/250 if you need a pump that:
✔ Delivers strong pressure across your home
✔ Handles large irrigation setups
✔ Supports tall buildings or long-distance pumping
✔ Runs reliably with clean water
✔ Offers top-level performance with low maintenance
- Supplying multi-storey buildings with strong water pressure
- Moving water over long distances
- Powering industrial and commercial water systems
- Running medium to large irrigation setups, sprinklers, and drip lines
- Filling or transferring water between storage tanks
- Applications requiring high pressure rather than high volume
